KT-HD3500E
Sur commande

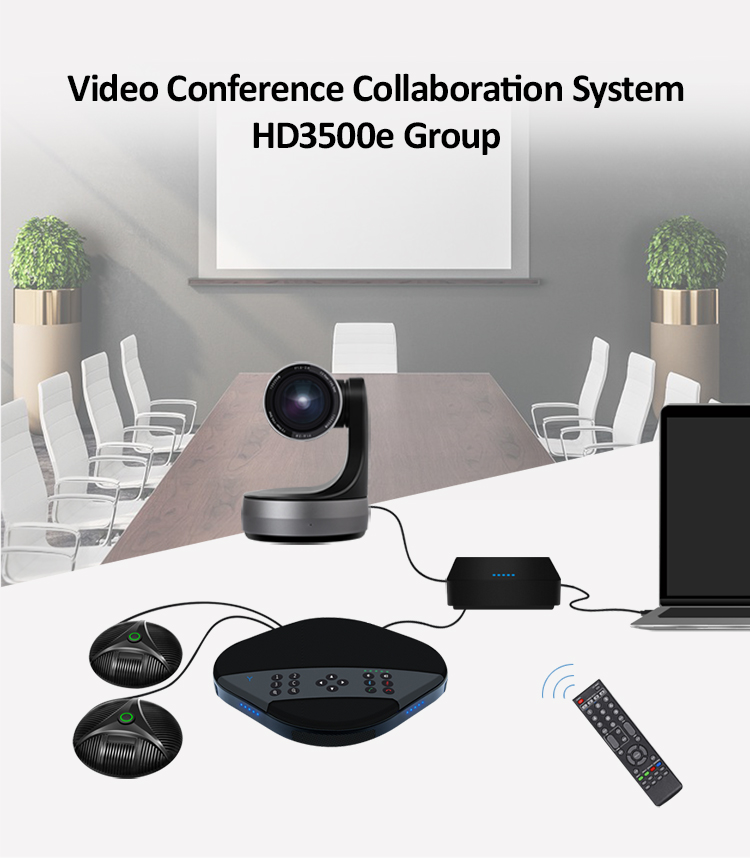

Le KT-HD3500e de KATO VISION estun système de vidéoconférence HD 1080p conçu pour les salles de réunion de petite et moyenne taille, offrant une vidéo HD de haute qualité, un son clair et une connectivité USB plug-and-play facile. Il intègre la suppression de l'écho acoustique et la réduction du bruit pour un son de meilleure qualité, un haut-parleur full duplex avec fonction Bluetooth et est compatible avec les logiciels de visioconférence les plus répandus comme Zoom et Skype Entreprise.
|

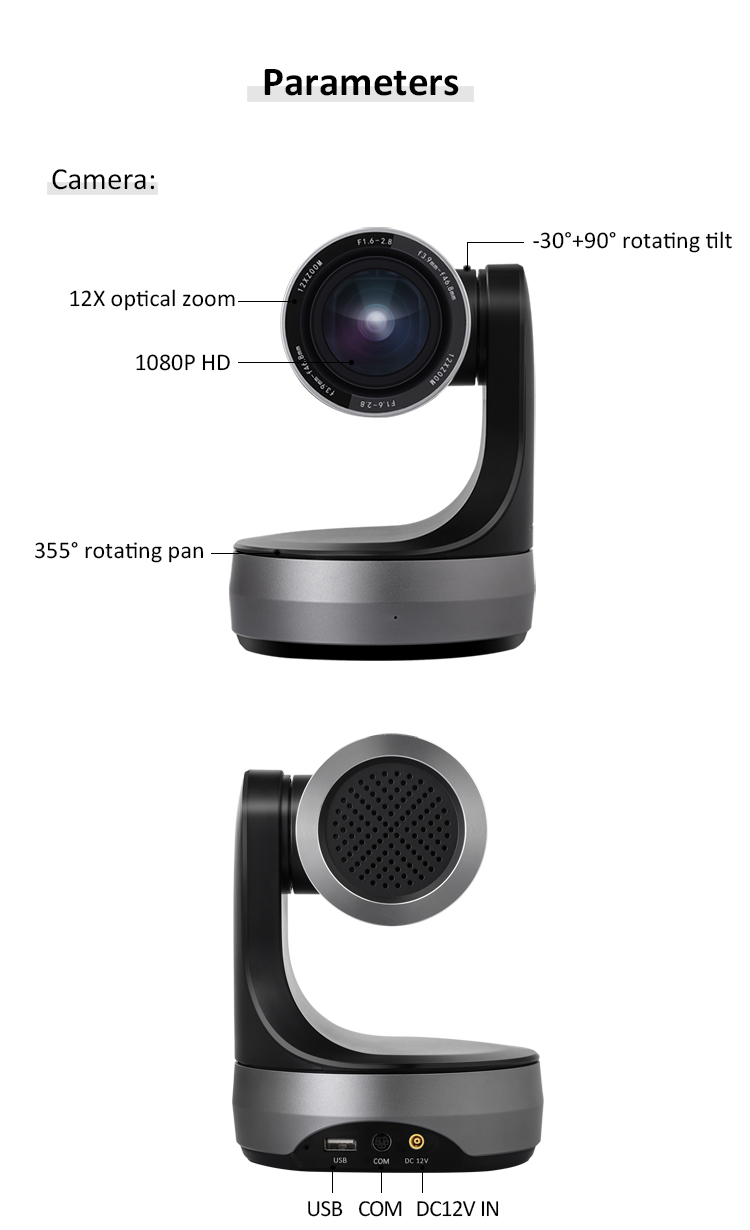

Camera |
|
|
Resolution |
MJPG/H.264:320*240,640*480,720*576,1280*720,1920*1080 YUY2:320*240,640*480,720*576,1280*720 |
|
Image Sensor |
SONY 1/2.8” Progressive CMOS |
|
Effective Pixels |
3.1 Megapixels |
|
Signal |
PAL/NTSC |
|
Lens |
12x，f=3.9mm(w)～46.8mm(T) |
|
Horizontal View Angle |
72.5°(W)~6.5°(T) |
|
Focus System |
Auto/Manual |
|
Minimum Illumination |
0.5 Lux |
|
Shutter |
1/25~1/10000s |
|
Gain |
Auto/Manual |
|
White Balance |
Auto/Manual/ Indoor/Outdoor/One push/ATW |
|
lmage Effect |
Full color/Image flip |
|
S/N Ratio |
≥50db |
|
Pan |
355°(max.speed:80°/s) |
|
Tilt |
-30° to +90°(max. speed: 6o°/s) |
|
Size |
(L)131×(W)131×(H)175mm |
|
Omnidirectional Speakerphone |
|
|
Voice Technical Parameters |
Acoustic echo cancellation（AEC）：>65dB Echo length cancellation：≥500ms Bidirectional noise compression（NC）：<25dB Automatic direction finding Technology of Intelligent microphone（EMI） Automatic gain control（AGC） |
|
Audio parameters |
Microphone frequency response：100Hz-22KHz Speaker frequency response：100Hz-22KHz Speaker volume: 90dB at the most Microphone sound-pickup radius: 4 meters 360 degrees full range |
|
Protocol |
UVC 1.1 |
|
Expansion Mic (optional) |
2 external microphones optional for connection makes the sound-pickup radius up to 6 meters |
|
Dimensions |
180mm×180mm×42mm(L×W×H) |
|

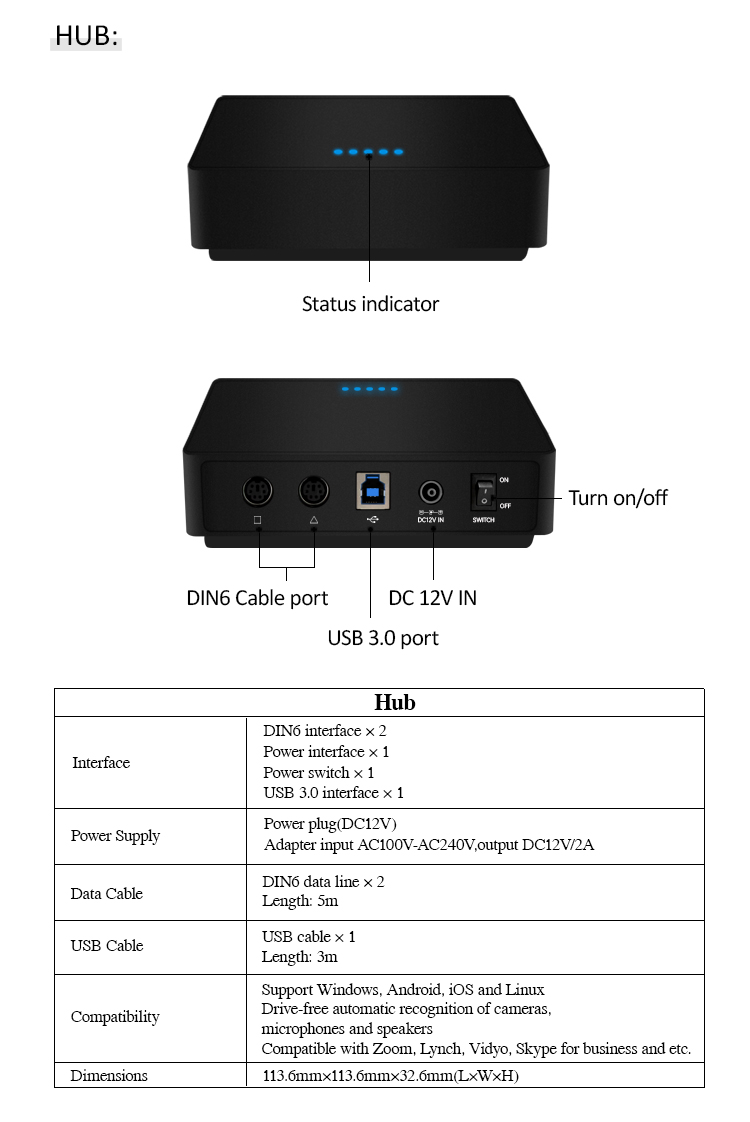

Hub |
|
|
Interface |
DIN6 interface × 2 Power interface × 1 Power switch × 1 USB interface × 1 |
|
Power supply |
Power plug(DC12V) Adapter input AC100V-AC240V,output DC12V/2A |
|
Data Cable |
DIN6 data line × 2 Length: 5m |
|
USB cable |
USB cable × 1 Length: 3m |
|
Compatibility |
Support Windows, Android, iOS and Linux Drive-free automatic recognition of cameras, microphones and speakers Compatible with Zoom, Lynch, Vidyo, Skype for business and etc. |
|
Dimensions |
113.6mm×113.6mm×32.6mm(L×W×H) |
