BLT VIDEO SERVER SMS 4-U

Sur commande

The BLT SMS-4U is a 12 channel Video Server, with simultaneous recording while playback, featuring full HDTV capability,stereoscopic recording for S3DTV and ready for upgrade to UltraHDTV (4K, full resolution 50/60P) through a dedicated BLT adaptor processor. Recording sources can be isolated cameras (ISO-Cam) or High Speed Cameras to perform Super Slow Motion up to x8 or Ultra Motion/Hypermotion. SMS-4U comes in different scalable configurations ranging from 2R2P (2 inputs~2 outputs) up to 8R4P (8 in~4 out). Each Video channel is associated with timecode and up to 16 Audio tracks. The top version, 8R4P allows up to 8 cameras recording or 2 High Speed cameras. Multiple Playback channel configuration can be set either as multiple independent users or coupled as Program/Preview to allow live instant action editing. Thanks to its compact size (5 rack units) and rugged chassis, SMS-4U is particularly suited for live sport and news applications in Studio or OB VAN.

Caractéristiques

  • Weight
    25 Kg approx
  • Inputs
    up to 8 x SDI (HDTV/SDTV) with active loop-through
  • Outputs
    4 x SDI (HDTV/SDTV) with dual output 4 x SDI (Down Converted), with on-screen display or MVW 4 x SDI input monitor with down converter
  • Gen. Lock
    Automatic with Black Burst/composite video, or tri-level sync, with Hi-z for loop-through
  • TV Standards
    1080i/50 1080i/59.94 720p/50 720p/59.94 625i/50 525i/60 SMPTE 259/274/292/296
  • Compression
    Full 10 bit precision, 1920x1080 unscaled process 4:2:2 JP2K I-Frame only, VBR Constant Quality, data rate up to 150 Mbit/sec. each channel
  • Inputs per video channel
    8 mono (4 stereo) Audio tracks, option 16 Audio tracks with internal exible router 4 x 4 Analog 4 x 4 AES-EBU Embedded (SMPTE 272MA/299)
  • Outputs per video channe
    8 mono (4 stereo) Audio tracks, option 16 Audio tracks 4 x 4 Analog 4 x 4 AES-EBU Embedded (SMPTE 272 MA / 299)

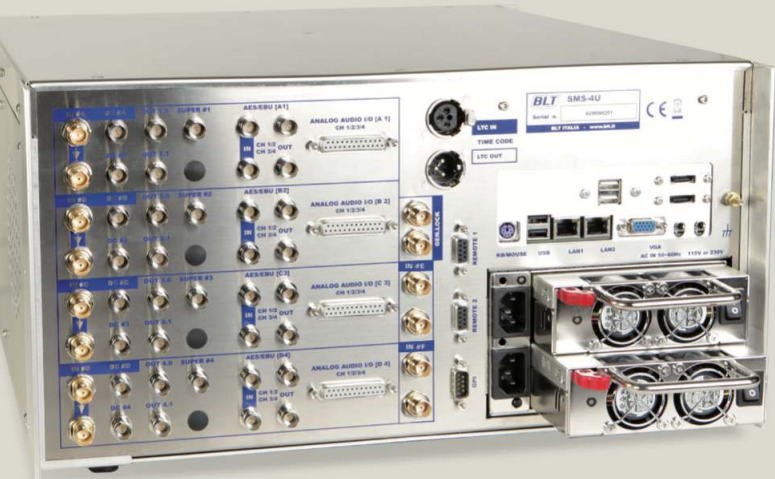

  • Connectors
    Analog: female DB25, balanced 600 Ohm or Hi-z AES-EBU: BNC 75 Ohm MADI (AES-10): BNC 75 Ohm (option)
  • Analog Levels
    + 4dBm
  • Sampling
    Linear PCM 16/24 bit, 48KHz - not compressed
  • CONTROL INTERFACE PROTOCOL
    B75 compatible over IP with BLT extensions
  • CONTROL INTERFACE Connectors
    2 x LAN Gigabit and 9-pin RS-422A (RS-232 with adaptor)
  • Hard Disk or Solid-State Drive
    Interface: SAS/SATA (HDD/SSD) with RAID protection Level 5 Type: up to 8 x 2 1/2 inches, internal, removable
  • Recording Time
    HDTV up to 150 hours (total) SDTV up tp 300 hours (total) - subject to change according to storage size dened at order time
  • High Speed Recording Camera compatibility
    LDK-8200 (HDTV x 2) LDK-8300 (HDTV x 3) SK-HD1500 (HDTV x 3) HDC-3300 (HDTV x 3) LDK-8600 (HDTV x 6) HDC-4300 (HDTV x 8) BVP-9500WS (SDTV x 3) LDK-23HS (SDTV x 3)
  • Voltage
    Hot swap Dual Redundant PSU 200~240 or 100 ~117 Vac auto switch 50/60Hz
  • Consumption
    250 W approx
  • Dimensions (HDD includ.)
    430 (w) x 220 (h) x 550 (d) mm
  • Environmental
    Operating temperature: 0°~ 40°C Humidity: less than 90% (non condensing)
  • HR
    The HR option is the HDTV Ready version, with the same functionality limited to SDTV. Upgrade to full HDTV through on-eld board swap replacement
  • MADI
    64 and 56 MADI (AES-10) input through BNC, with exible internal channel assignment
  • MVW
    up to four independent MultiViewer
