HDKATOV KT-UH86DHS
Sur commande

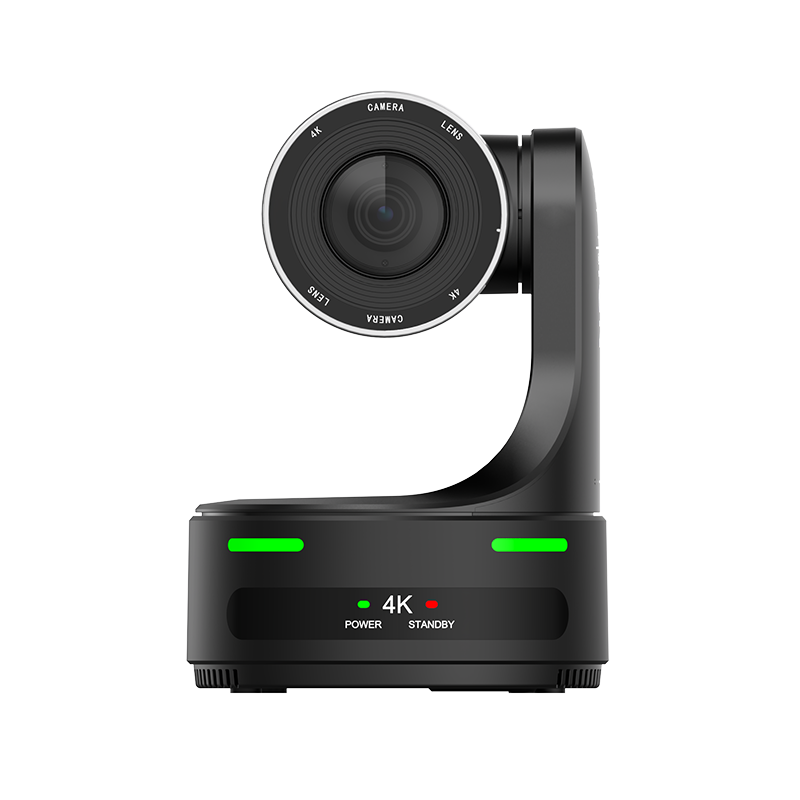

La HDKATOV KT-UH86DHS est une caméra professionnelle 4K Ultra HD Pan-Tilt-Zoom (PTZ) équipée d'un capteur CMOS Sony 1/2,5 pouce, d'un zoom optique 20x et d'un suivi et d'un cadrage automatiques pilotés par l'IA. Elle dispose de plusieurs interfaces de sortie, dont HDMI, USB 3.0, SDI et LAN, et prend en charge divers protocoles de streaming comme NDI®, SRT et RTMP. Conçue pour offrir une grande flexibilité grâce à sa prise en charge de l'alimentation par Ethernet (PoE) et ses multiples options de montage, elle est idéale pour le streaming en direct, la production vidéo professionnelle et la diffusion dans des applications telles que les studios, les églises et les salles de spectacle.
|
Image Parameters |
|
|
Resolution |
HDMI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25,1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY 1/2.5" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
UH86DF:12X Optical Zoom, f=3.4m(W)~40.4mm(T), F1.8~F3.6 UH86DHS:20X Optical Zoom, f=5.05m(W)~91.49mm(T),F1.8~F2.9 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
UH86DF:80.5°(W)~7.6°(T) UH86DHS:60.05°(W)~3.45°(T) |
|
Vertical View Angle |
UH86DF:50.5°(W)~4.4°(T) UH86DHS:35.07°(W)~1.96°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
0.1Lux |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
355° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~80°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE |
802.3af |
|
AI |
|
|
Intelligent tracking |
Support |
|
Auto Framing |
Support |
|
Gesture Recognition |
Support |
|
USB |
|
|
Protocol |
UVC 1.1, UAC1.0 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
MJPEG: 3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, Free D, NDI®HX2 (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 1920*1080, 1280*720 |
|
Sub Stream Resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bitrate |
48K and 44.1K |
|

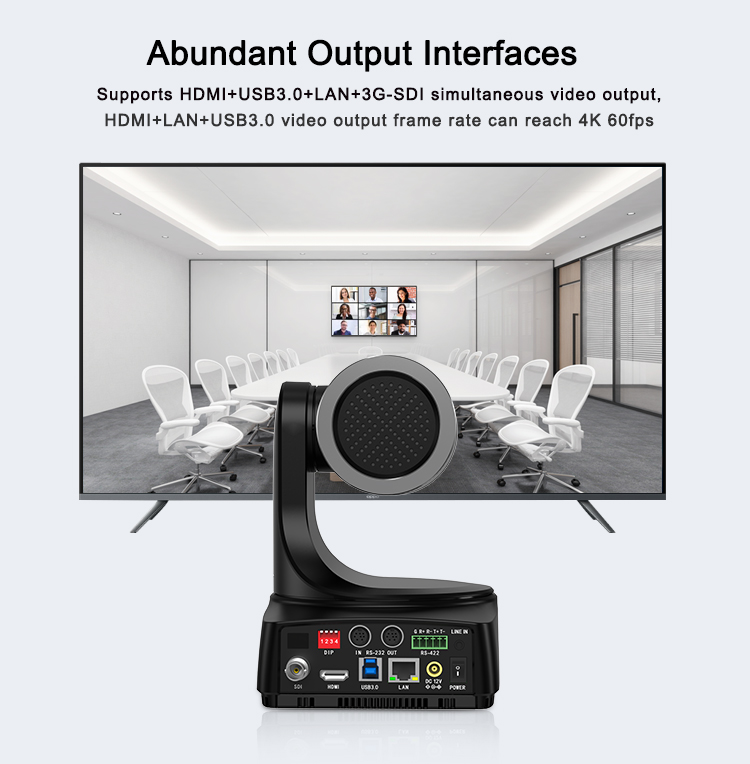

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 2.0 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 1000M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/OUT: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.2.0A |
|
Power Consumption |
Max.24W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Dimension |
(W)134*(D)174*(H)191mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
