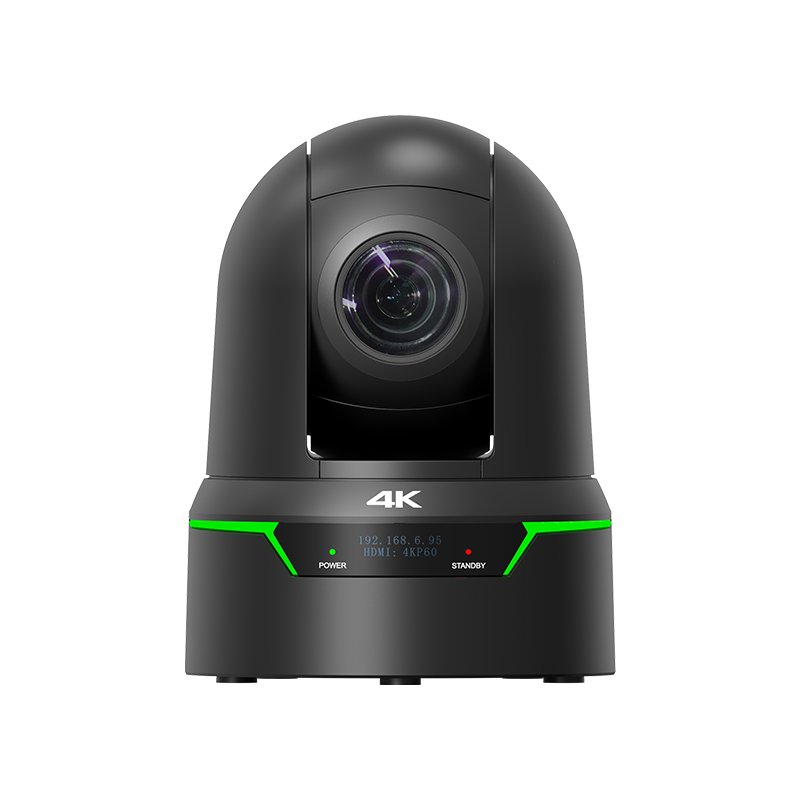

HDKATOV KT-UH71KT
Sur commande

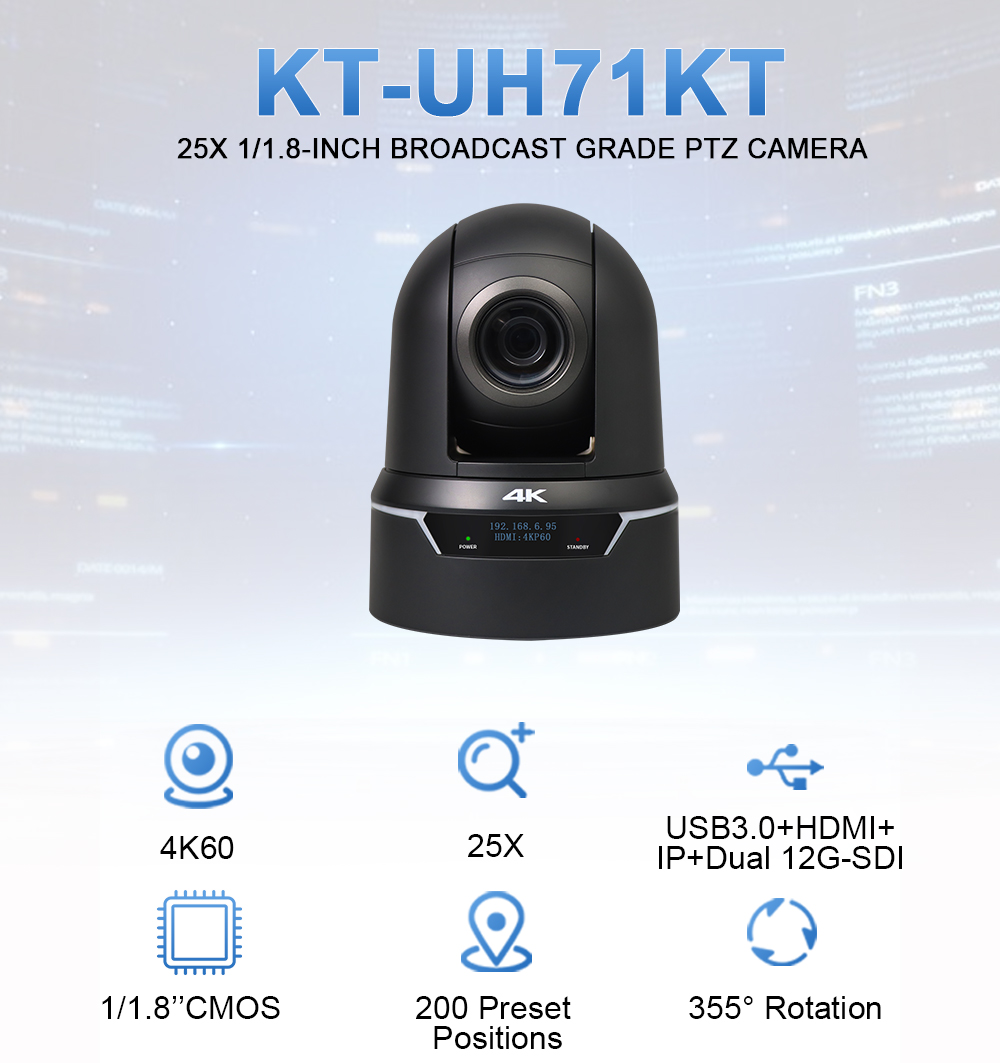

Le HDKATOV KT-UH71KT est une caméra PTZ 4K Ultra HD de qualité broadcast dotée d'un capteur CMOS SONY 1/1,8 pouce, d'un zoom optique 25x et de sorties multi-interfaces simultanées, notamment HDMI, USB 3.0, LAN et SDI Il dispose d'un suivi automatique de l'IA intégré et d'une reconnaissance des gestes pour une mise au point du sujet sans effort, prend en charge les protocoles réseau tels que NDI, SRT et RTSP, et offre des fonctionnalités avancées telles que la prise en charge du protocole FreeD pour les studios virtuels et plusieurs options de montage
|
Image Parameters |
|
|
Resolution |
HDMI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY 1/1.8" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
25X Optical Zoom, f=7.1(W)~171.95mm(T) |
|
Horizontal View Angle |
59.2°(W)~2.5°(T) |
|
Vertical View Angle |
34.6(W)~1.4(T) |
|
Iris |
F1.61~F5.19 |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
0.1Lux |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
-175°~+175° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
0.1°/S~120°/S |
|
Tilt Speed |
0.1°/S~120°/S |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE+ |
Support, 802.3at |
|
USB |
|
|
Protocol |
UVC 1.1, UAC1.0 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
MJPEG: 3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 1920*1080, 1280*720 |
|
Sub Stream Resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Sampling Rate |
48K, 44.1K |
|
Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 2.0 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 1000M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
IEC 60130-10 Type A |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.3A |
|
Power Consumption |
Max.9.5W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Dimension |
(W)158*(D)193*(H)208mm |
|
Weight |
2.0kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
