HDKATOV KT-UH71DT
Sur commande

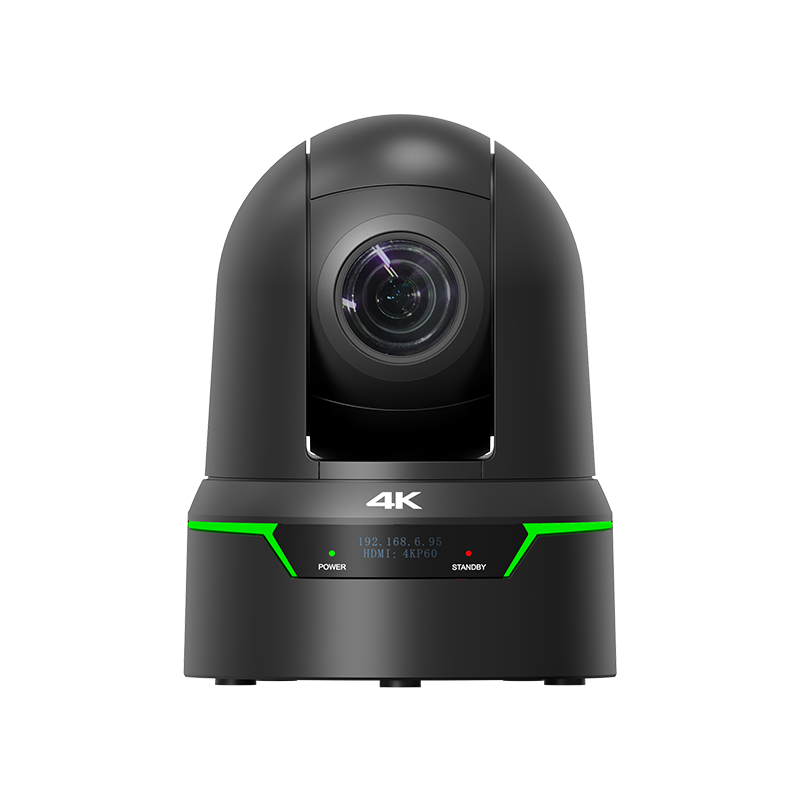

Le HDKATOV KT-UH71DT est une caméra PTZ (Pan-Tilt-Zoom) de qualité professionnelle conçue pour la diffusion, les événements en direct et les réunions hybrides, dotée d'une vidéo 4K60 Ultra HD, d'un zoom optique 25x, d'un suivi automatique avancé alimenté par l'IA et d'un contrôle gestuel pour un fonctionnement mains libres Il offre plusieurs sorties vidéo, notamment HDMI, USB 3.0 et 3G-SDI, prend en charge divers protocoles réseau pour une intégration facile et est construit avec un capteur CMOS SONY hautes performances pour une excellente qualité d' image même en basse lumière.
|
Image Parameters |
|
|
Resolution |
HDMI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY 1/1.8" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
25X Optical Zoom, f=7.1(W)~171.95mm(T) |
|
Horizontal View Angle |
59.2°(W)~2.5°(T) |
|
Vertical View Angle |
34.6(W)~1.4(T) |
|
Iris |
F1.61~F5.19 |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
0.1Lux |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
-175°~+175° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
0.1°/S~120°/S |
|
Tilt Speed |
0.1°/S~120°/S |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE+ |
Support, 802.3at |
|
USB |
|
|
Protocol |
UVC 1.1, UAC1.0 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
MJPEG: 3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 1920*1080, 1280*720 |
|
Sub Stream Resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Sampling Rate |
48K, 44.1K |
|
Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 2.0 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 1000M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
IEC 60130-10 Type A |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.3A |
|
Power Consumption |
Max.9.5W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Dimension |
(W)158*(D)193*(H)208mm |
|
Weight |
2.0kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
