HDKATOV KT-HD62A/62BD
Sur commande

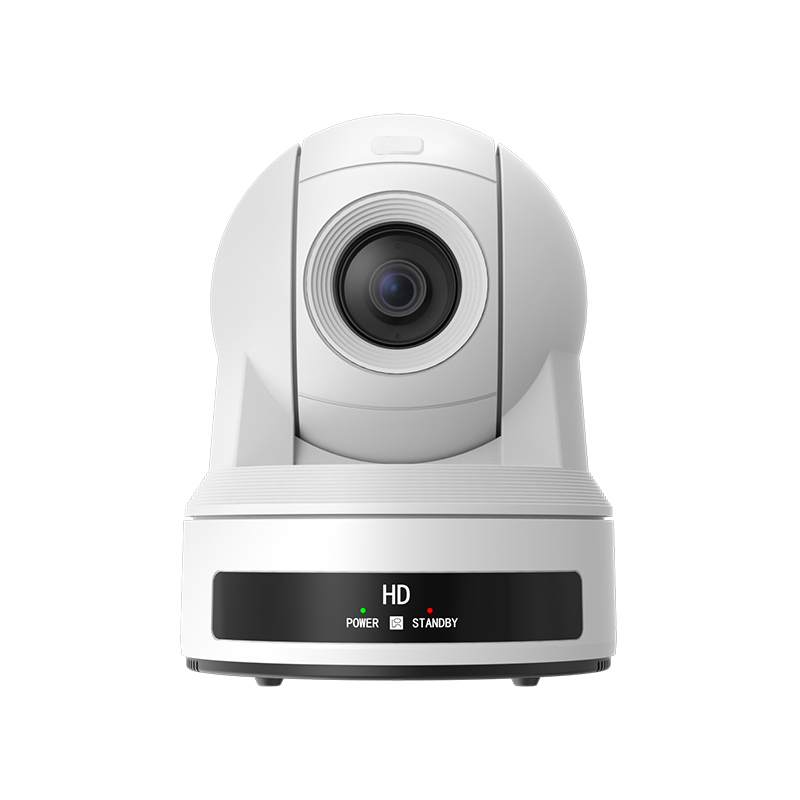

La Kato Vision KT-HD62A/62BD est une caméra professionnelle PTZ (Pan-Tilt-Zoom) HD 1080p. Elle est équipée d'un capteur CMOS Sony haute qualité offrant des performances impressionnantes en basse lumière et d'un puissant zoom optique (20x pour la KT-HD62A ou 30x pour la KT-HD62BD) avec zoom numérique 16x. Elle offre une connectivité étendue via HDMI, 3G-SDI, LAN et USB 3.0, prenant en charge les protocoles de streaming IP tels que NDI®|HX et Full NDI® pour une production vidéo fluide dans diverses applications, notamment la visioconférence, le streaming en direct, l'éducation et la télémédecine.
|
Image Parameters |
|
|
Resolution |
HDMI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
3.50 Megapixels, 2.07 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
HD62A: 20X Optical Zoom, f=5.2mm(W)~104mm(T),F1.55~3.13 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
HD62A: 58.7°(W)~3.2°(T) |
|
Vertical View Angle |
HD62A: 32.2°(W)~1.8°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
0.1 Lux @ (F1.3, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
355° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~80°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE |
802.3af |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional), Full NDI® (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
1920*1080, 1280*960, 1280*720, 720*576, 720*480, 640*480 |
|
Sub Stream Resolution |
640*480, 640*360, 480*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

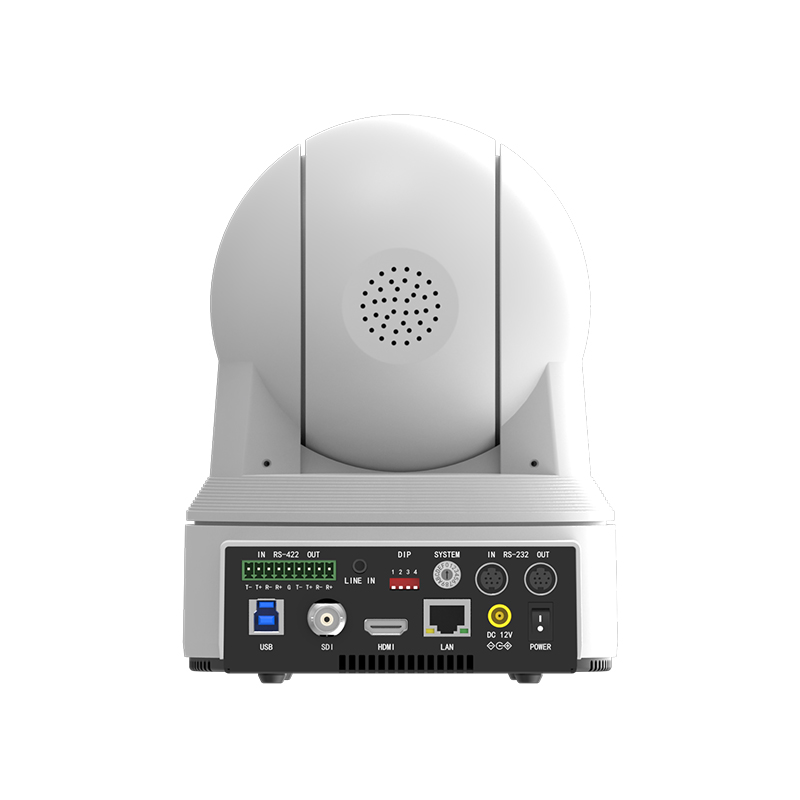

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power Consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Dimension |
(W)126*(D)189*(H)198mm |
|
Weight |
1.3kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
