HDKATOV KT-HD62SK
Sur commande
La caméra KT-HD62SK est une caméra professionnelle HD PTZ (panoramique, inclinaison et zoom) Kato Vision conçue pour la visioconférence, la diffusion en direct, l'éducation et la diffusion. Elle est dotée d'une résolution 1080p60, d'un capteur CMOS SONY 1/2,8" STARVIS2, du suivi par IA , de plusieurs interfaces de sortie (HDMI, LAN, 3G-SDI) et de la prise en charge du NDI (en option) pour les flux de travail IP. Elle offre d'excellentes performances en basse lumière grâce à son rapport signal/bruit élevé et à ses algorithmes de réduction du bruit, ainsi qu'à ses options de montage flexibles.
|
Image parameters |
|
|
Video Format |
HDMI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY FCB-EV9520L original module |
|
Pixel |
2.13 million pixels |
|
Scanning method |
Line by Line |
|
Lens focal length |
30x optical zoom, f= 4.3 m (wide angle) ~ 129.0 mm (narrow angle), F1.6 ~ F4.7 |
|
Digital zoom |
12X |
|
Horizontal field of view |
64 °(W)~ 2.4 °(T) |
|
Focus mode |
Automatic, Manual |
|
Shutter |
1/50s ~ 1/10000s |
|
Minimum illumination |
0.1 Lux @ (F1.6, AGC ON) |
|
Exposure |
Auto, Manual, Aperture Priority, Shutter Priority, Brightness Priority |
|
White Balance |
Automatic, indoor, outdoor, key control, automatic tracking, manual |
|
Backlight compensation |
Support |
|
Digital noise reduction |
2D&3D digital noise reduction |
|
Signal-to-Noise Ratio |
≥50dB |
|
PTZ |
|
|
Horizontal rotation range |
355° |
|
Vertical rotation range |
-30°~+90° |
|
Horizontal rotation speed range |
1°~80°/s |
|
Vertical rotation speed range |
1°~60°/s |
|
Number of preset positions |
9 preset positions by IR remote controller, and maximum 255 preset positions by joystick controller |
|
Preset position accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE power supply |
802.3af |
|
AI |
|
|
Intelligent tracking |
Support |
|
Automatic framing |
Support |
|
Tracking size |
Support |
|
Tracking sensitivity |
Support |
|
AI Guardian |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif , DHCP, VISCA Over IP, Full NDI, NDI®|HX2 (optional) |
|
Video encoding format |
H.264, H.265 |
|
Number of streams |
Main stream*1, auxiliary stream*1 |
|
Main stream resolution |
1920*1080 |
|
Auxiliary stream resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
|
Bit rate control |
Variable bitrate, fixed bitrate |
|
Audio |
|
|
Audio compression standards |
AAC |
|
Audio Bitrate |
128kbps |
|
Input and output interface |
|
|
HDMI interface |
1 channel, HDMI: Version 1.4 |
|
SDI Interface |
1 channel, 3G-SDI interface 1 way, GEN-LOCK |
|
Network Interface |
1-way, RJ45: 10M/100M/ 1000M adaptive Ethernet port |
|
Audio Interface |
1 channel, Line In, 3.5mm audio interface |
|
Communication interface |
1-way, RS232 IN/OUT: 8-pin mini DIN, maximum distance 30 meters, VISCA/Pelco-D/Pelco-P protocol |
|
Power interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input voltage |
DC 12V |
|
Input Current |
Max. 1.0A |
|
Power consumption |
Max 12W |
|
Operating temperature |
0~40℃ |
|
Storage temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Size |
(W)126*(D)189*(H)198mm |
|
Weight |
1.3kg |
|

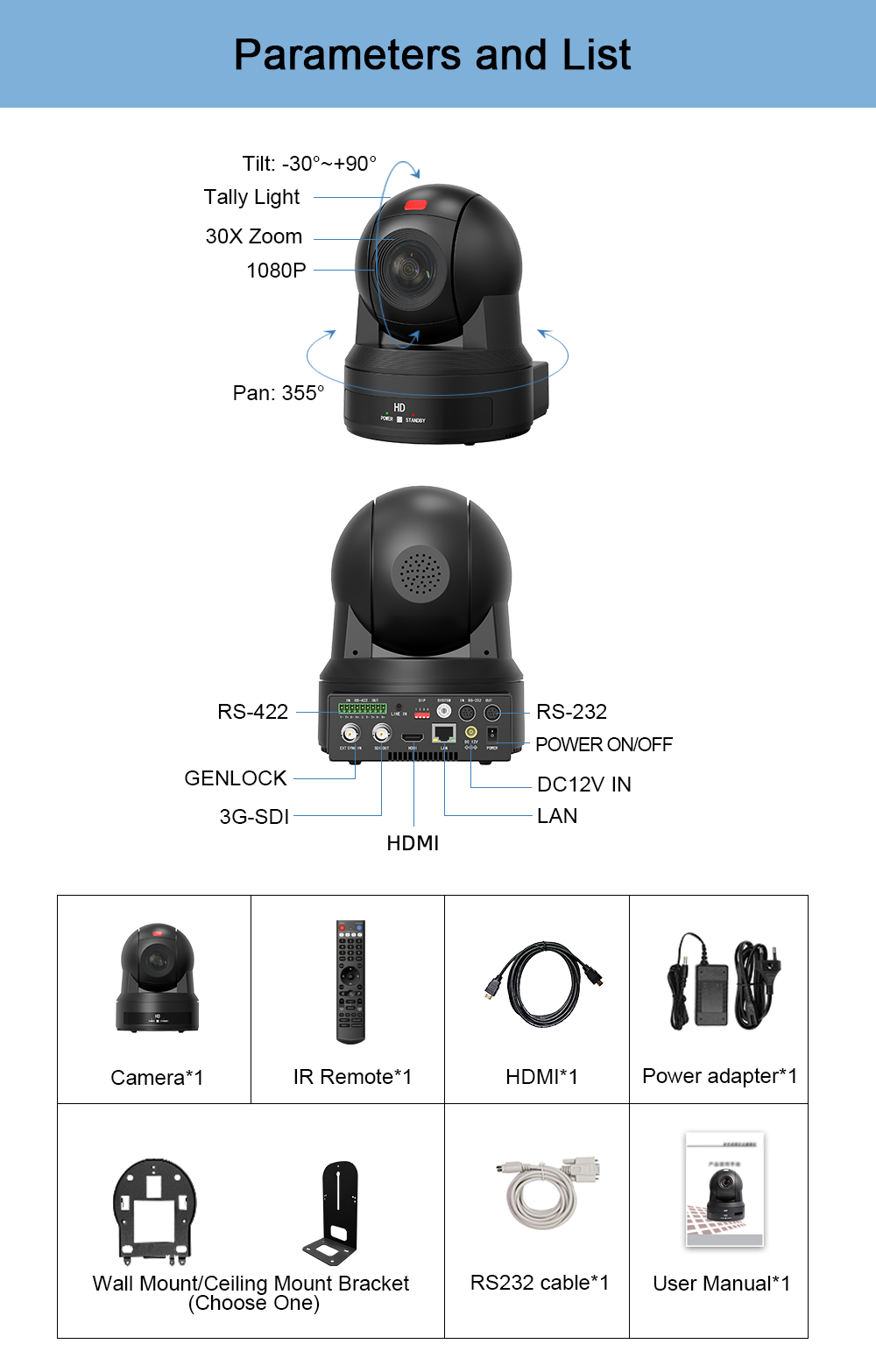

Supplied accessories |
DC 12V power adapter, IR Remote, User manual, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
