HDKATOV KT-HD62DBN
Sur commande

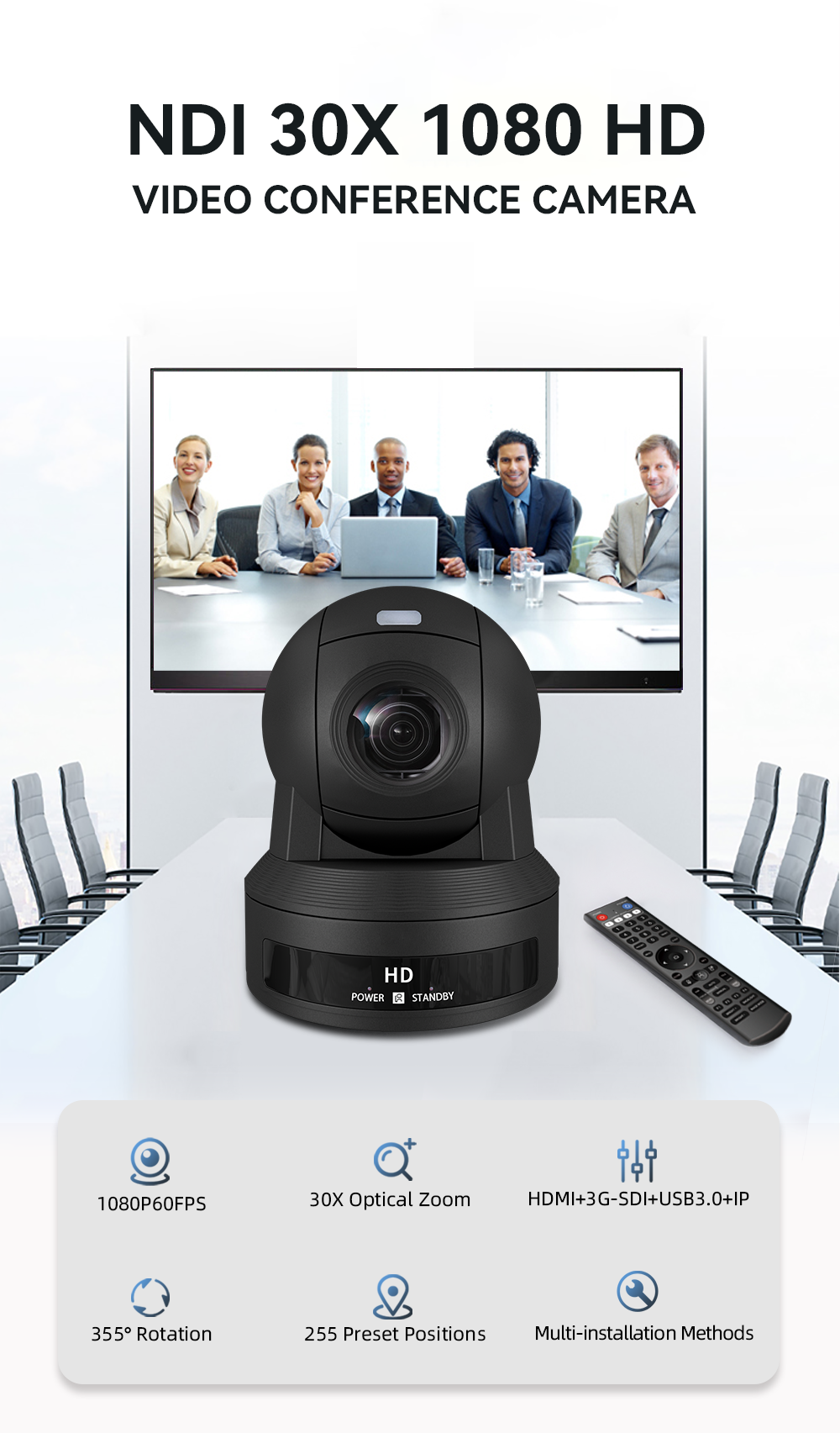

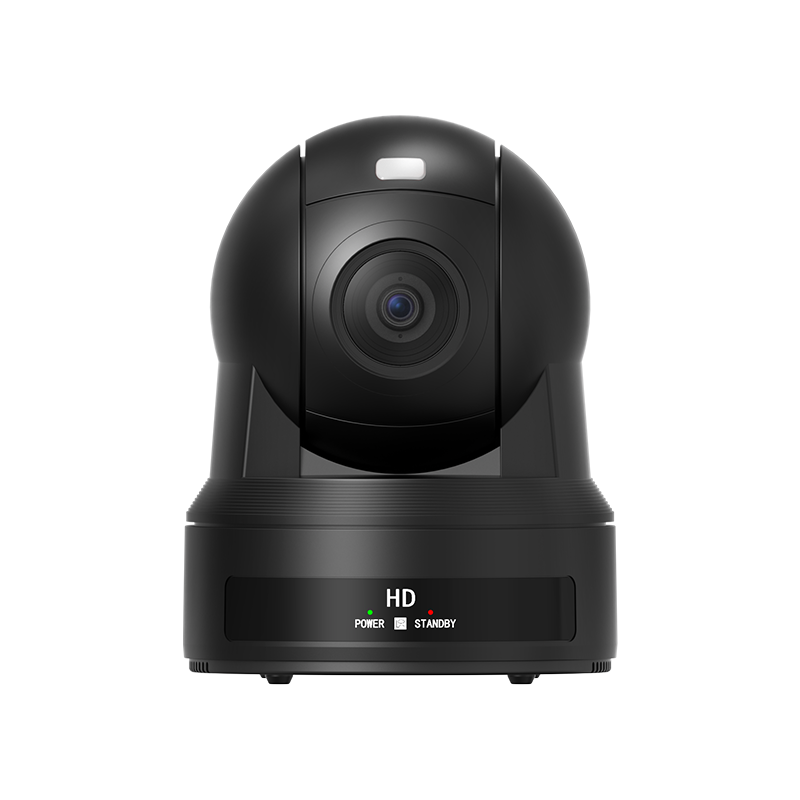

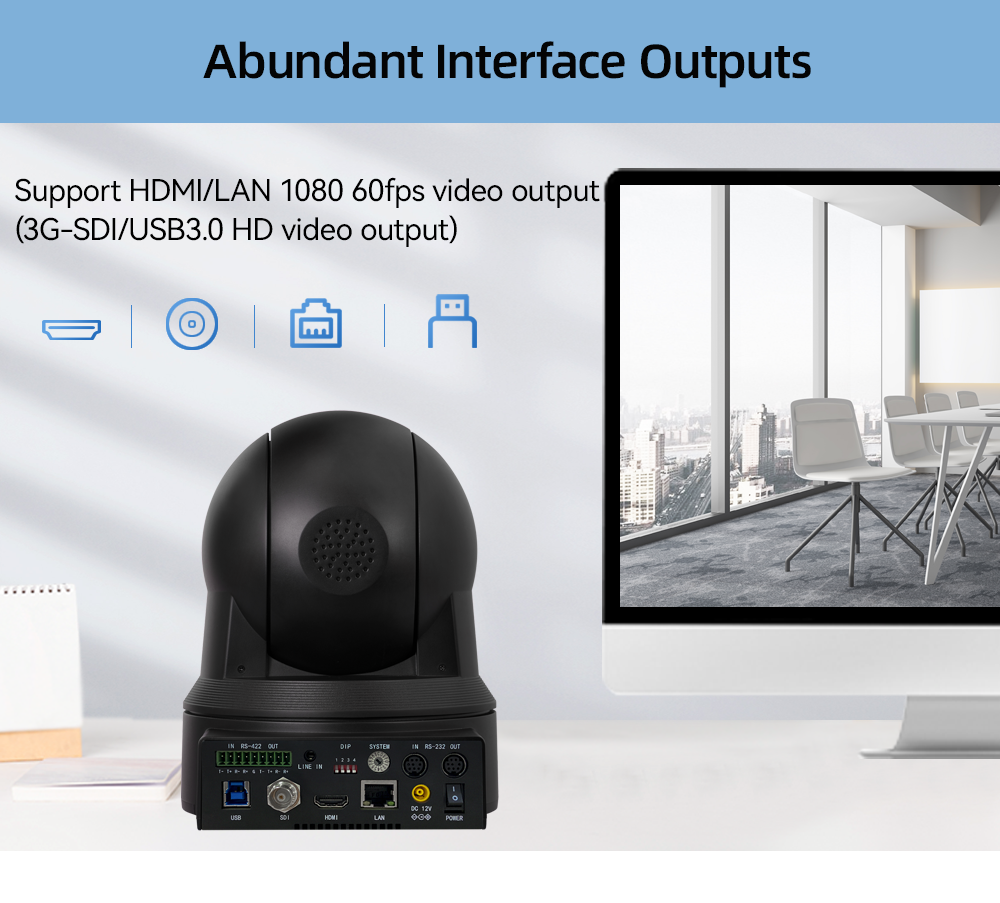

La Kato Vision KT-HD62DBN est une caméra professionnelle haute définition (HD) PTZ (panoramique, inclinaison et zoom) capable de capturer des vidéos 1080p jusqu'à 60 images par seconde. Elle est équipée d'un zoom optique 30x, de la prise en charge NDI et du suivi automatique par IA. Conçue pour des applications telles que la visioconférence, le streaming en direct et la diffusion, elle offre de multiples interfaces de sortie (USB 3.0, HDMI, LAN, 3G-SDI) et d'excellentes performances en basse lumière.
|
Image Parameters |
|
|
Resolution |
HDMI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
3.50 Megapixels, 2.07 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
HD62A: 20X Optical Zoom, f=5.2mm(W)~104mm(T) |
|
Horizontal View Angle |
HD62A: 58.7°(W)~3.2°(T) |
|
Vertical View Angle |
HD62A: 32.8°(W)~1.2°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
0.1 Lux @ (F1.3, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
±355° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~80°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE |
802.3af |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
