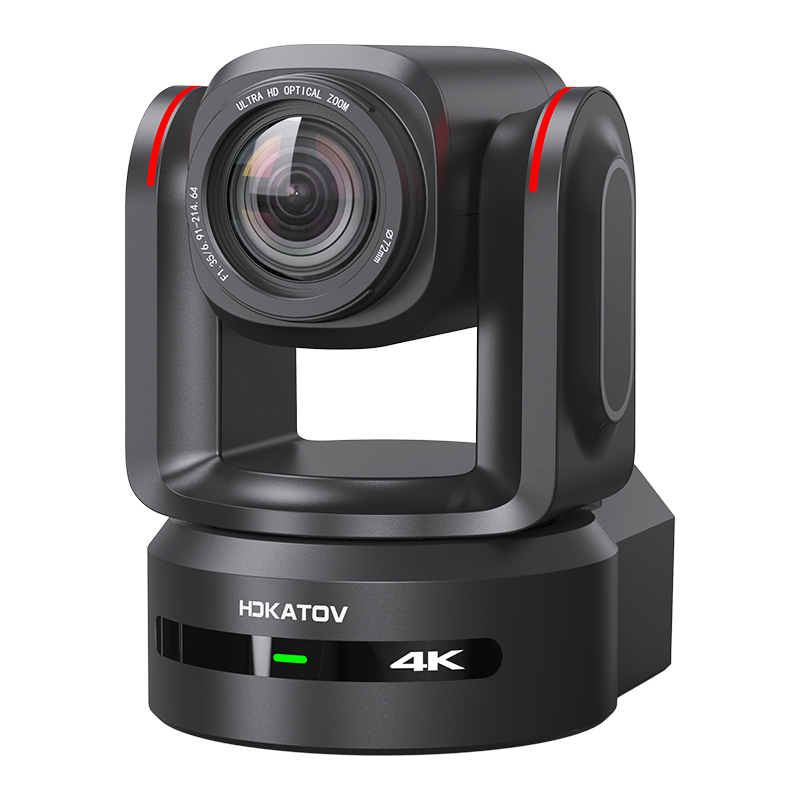

HDKATOV BC10KV
Sur commande
La HDKATOV BC10KV est une caméra PTZ professionnelle 4K60 de qualité broadcast, dotée d'un zoom optique 30x, d'un capteur CMOS SONY 1/1,8 pouce, d'un suivi automatique et d'un contrôle gestuel pilotés par l'IA. Elle offre une large gamme d'interfaces professionnelles, dont USB 3.0, 12G-SDI, HDMI et LAN, et prend en charge les protocoles de streaming modernes tels que NDI®|HX3, SRT et FreeD. Cette caméra est idéale pour divers scénarios de production en direct, tels que les concerts, les événements sportifs, le streaming en direct, l'éducation et les visioconférences d'entreprise.
|
Image Parameters |
|
|
Resolution |
HDMI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 12G-SDI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY 1/1.8 CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
30X Optical Zoom , f=6.91(W)~214.64mm(T), F1.35~F4.6 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
59°(W)~1.98°(T) |
|
Vertical View Angle |
34.14°(W)~1.12°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
0.1Lux |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
-167°~+167° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
0.1°/S~120°/S |
|
Tilt Speed |
0.1°/S~120°/S |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE++ |
802.3bt Type 3 |
|
USB |
|
|
Protocol |
UVC 1.1, UAC1.0 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
MJPEG: 3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 YUY2: 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC PTZ Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2（optional）, Free D |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 1920*1080, 1280*720 |
|
Sub Stream Resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
|
Bit Rate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Sampling Rate |
48K, 44.1K |
|
Interface |
|
|
HDMI Interface |
1 Line, HDMI：Version2.0 |
|
SDI Interface |
1 Line, 3G-SDI 2 Line, 12G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-A Socket 1 Line, UVC, Type-B Socket |
|
Network Interface |
1 Line, RJ45：1000M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In,3.5mm audio port 2 Line, AUDIO INPUT, XLR audio port |
|
Serial Interface |
1 Line, RS232 IN/OUT, up to 30 meters, VISCA/Pelco-D/Pelco-P protocol 1 Line, RS422, up to 1200 meters, VISCA/Pelco-D/Pelco-P protocol |
|
Power Interface |
IEC 60130-10 Type A |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.3A |
|
Power Consumption |
Max.15.6W |
|
Phantom Power |
48V |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
（W）189*（D）230*（H）259mm |
|
Weight |
4.15 kg |
|
Accessories |
DC12V power adapter, IR remote control, operating instructions, HDMI video cable, USB3.0 cable, RS-232 cable, bracket |
