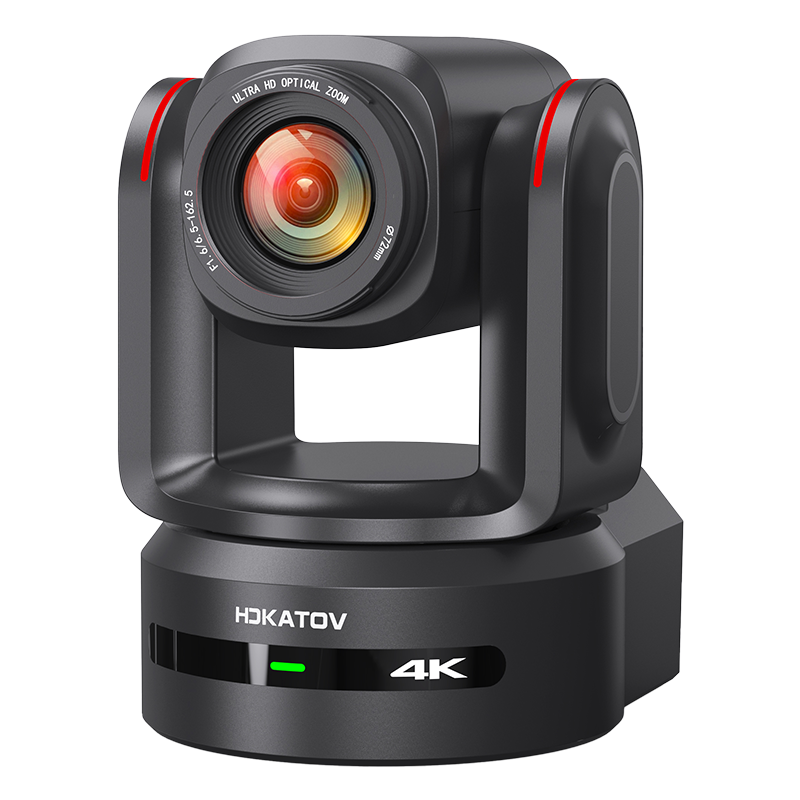

HDKATOV BC10HZ
Sur commande
La HDKATOV BC10HZ est une caméra PTZ (Panoramique, Inclinaison, Zoom) de qualité professionnelle, équipée d'un capteur CMOS Sony STARVIS 2 1/1,8 pouce, offrant des vidéos 4K Ultra HD (3840 x 2160) jusqu'à 60 ips. Elle offre un zoom optique 25x, prend en charge le HDR et intègre des fonctionnalités d'IA comme le cadrage automatique et NDI HX pour le streaming en direct, la visioconférence et la production de contenu dans divers environnements, tels que les studios et les grands auditoriums.
|
Image Parameters |
|
|
Resolution |
HDMI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 12G-SDI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY FCB-ER9500_GB original module |
|
Pixels |
8.4 Megapixels Effective |
|
Scan Mode |
Line by line |
|
Lens |
25X Optical Zoom ,f=6.5(W)~162.5mm(T),F1.6~F4.8 |
|
Digital zoom |
12X |
|
Horizontal View Angle |
58.1°(W)~2.3°(T) |
|
Focus System |
Auto , Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
0.1Lux |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
-167°~+167° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
0.1°/S~120°/S |
|
Tilt Speed |
0.1°/S~120°/S |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE++ |
802.3bt Type 3 |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI|HX, FULL NDI（optional） |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720 |
|
Sub Stream Resolution |
1280*720, 960*540, 640*360 |
|
Bit Rate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Sampling Rate |
48K和44.1K |
|
Interface |
|
|
HDMI Interface |
1 Line, HDMI：Version2.0 |
|
SDI Interface |
1 Line, GEN-LOCK 1 Line, 3G-SDI |
|
Optical Module Interface |
1 Line, Fiber(SFP28) |
|
USB Interface |
1 Line, USB3.0,Type-A Socket |
|
Network Interface |
1 Line, RJ45：1000M adaptive Ethernetport |
|
Audio Interface |
1 Line, Line In,3.5mm audio interface 2 Line, AUDIO INPUT,XLR audio interface |
|
Serial Interface |
1 Line, RS232 IN/OUT, up to 30 meters, VISCA/Pelco-D/Pelco-P protocol |
|
Power Interface |
IEC 60130-10 Type A |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.3A |
|
Power Consumption |
Max.15.6W |
|
Phantom Power |
48V |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
（W）189*（D）230*（H）259mm |
|
Weight |
4.15 kg |
|
Accessories |
DC12V power adapter, IR remote control, operating instructions, HDMI video cable, RS-232 serial cable, bracket |
