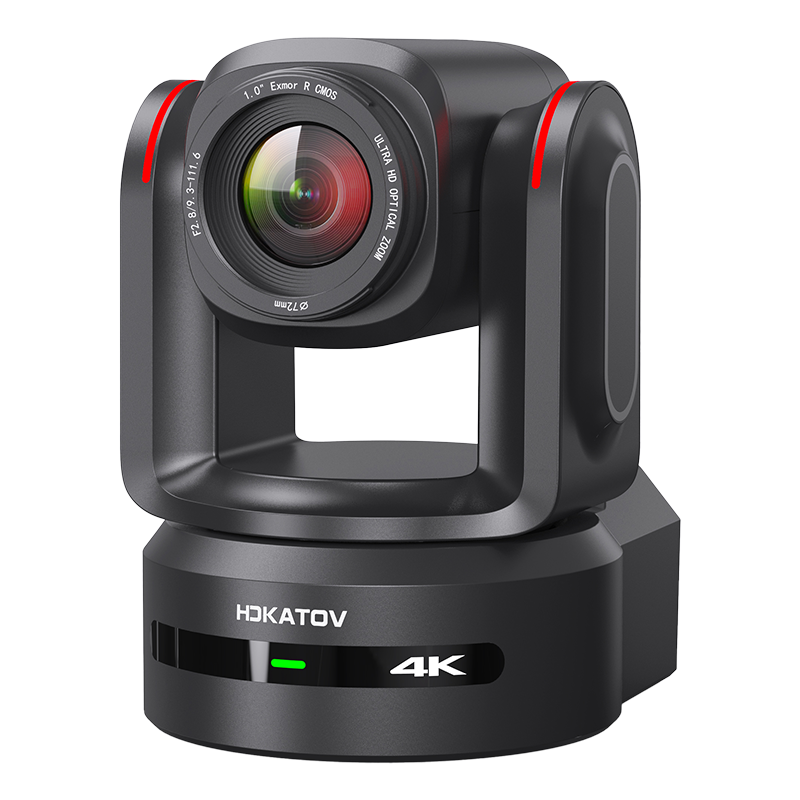

HDKATOV BC10HU
Sur commande
La BC10HU est une caméra PTZ 4K HDKATOV haut de gamme conçue pour la diffusion professionnelle et l'intégration audiovisuelle. Elle est équipée d'un capteur CMOS Sony de 1 pouce et d'un zoom optique 12x pour une clarté exceptionnelle, notamment en basse lumière. Elle offre une large gamme de connectivités professionnelles, notamment HDMI 2.0, 12G-SDI, LAN et SFP28, avec prise en charge de protocoles comme NDI et SRT pour une diffusion fluide. Parmi ses principales fonctionnalités, on compte la synchronisation Genlock pour les configurations multi-caméras, la prise en charge HDR pour des vidéos réalistes et la stabilisation d'image électronique
|
Image Parameters |
|
|
Video Format |
HDMI: 4K30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 12G-SDI: 4K30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY FCB-ES8230 original module |
|
Pixel |
20.5 megapixels |
|
Scanning Method |
Line by Line |
|
Lens |
12X Optical Zoom, f= 29mm (wide angle) ~ 348 mm (narrow angle), F 2.8 ~ F4.5 |
|
Digital Zoom |
16X |
|
Horizontal View Angel |
64 °(W) |
|
Focus Mode |
Automatic, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
0.1Lux |
|
Exposure |
Auto, Manual, Aperture Priority, Shutter Priority, Brightness Priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D & 3D digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Electronic Image Stabilization |
Support |
|
PTZ |
|
|
Pan Angle |
-167 °~ + 167 ° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
0.1°/S~120°/S |
|
Tilt Speed |
0.1°/S~120°/S |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE++ |
802.3bt Type 3 |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif , DHCP, VISCA Over IP, NDI®|HX, FULL NDI |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720 |
|
Sub Stream Resolution |
1280*720, 960*540, 640*360 |
|
Bit Rate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression Standards |
AAC |
|
Sampling Rate |
48K and 44.1K |
|

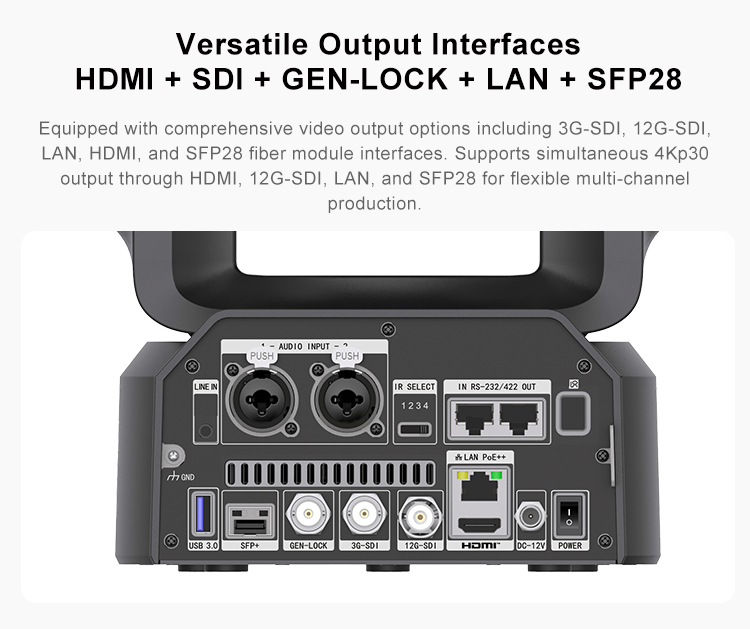

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 2.0 |
|
SDI Interface |
1 Line, G EN-LOCK 1 Line, 3G-SDI |
|
Optical Module Interface |
1 Line, Fiber(SFP28) |
|
USB Interface |
1 Line, USB 3.0, Type- A socket |
|
Network Interface |
1 Line, RJ45: 1000M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm audio interface 2 Line, AUDIO INPUT, X LR audio port |
|
Serial Interface |
1 Line, RS232 IN/OUT, up to 30 meters, VISCA/ Pelco -D/ Pelco -P protocol |
|
Power Interface |
IEC 60130-10 Type A |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max 1.3A |
|
Power Consumption |
Max. 15.6 W |
|
Phantom Power |
48V |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
black |
|
Dimension |
(W) 189 * (D) 230 * (H) 259 mm |
|
Weight |
4.15 kg |
|
Accessories |
DC12V power adapter, IR remote control, operating instructions, HDMI video cable, RS-232 serial cable, bracket |
