KATO KT-HD86(N)
Sur commande

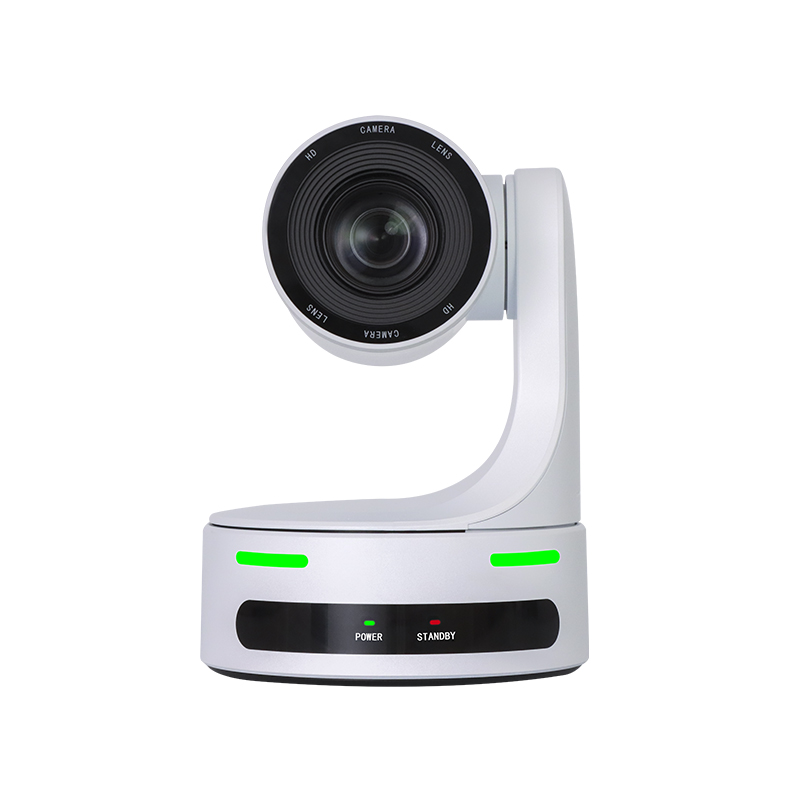

Le KATO Vision KT-HD86 est une caméra Pan-Tilt-Zoom (PTZ) haute définition 1080p avec un zoom optique 20x, un capteur CMOS SONY 1/2,8" et diverses sorties vidéo comme HDMI, 3G-SDI, LAN et USB 3.0Elle prend en charge plusieurs normes de compression (H.265, H.264, MJPEG, YUY2) et protocoles réseau (ONVIF, RTSP, RTMP, NDI®|HX). Conçue pour la visioconférence, l'apprentissage à distance, la diffusion et d'autres scénarios de surveillance, cette caméra peut être contrôlée via les protocoles VISCA, PELCO ou NDI
|
Image Parameters |
|
|
Resolution |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
UH45GQ: 10X Optical Zoom, f=4.2mm(W)~42mm(T), F1.76~F3.0 UH45GF: 12X Optical Zoom, f=4.1mm(W)~49.2mm(T), F1.8~F2.68 |
|
Horizontal View Angle |
UH45GQ: 67.5°(W)~7.6°(T) UH45GF: 72.5°(W)~6.57°(T) |
|
Vertical View Angle |
UH45GQ: 40.2°(W)~4.3°(T) UH45GF: 42.06°(W)~3.76°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
UH45GQ: 0.1 Lux @ (F1.8, AGC ON) UH45GF: 0.1 Lux @ (F1.8, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
±168° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~60°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
POE |
802.3af |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1 |
|
Main Stream Resolution |
1920*1080 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

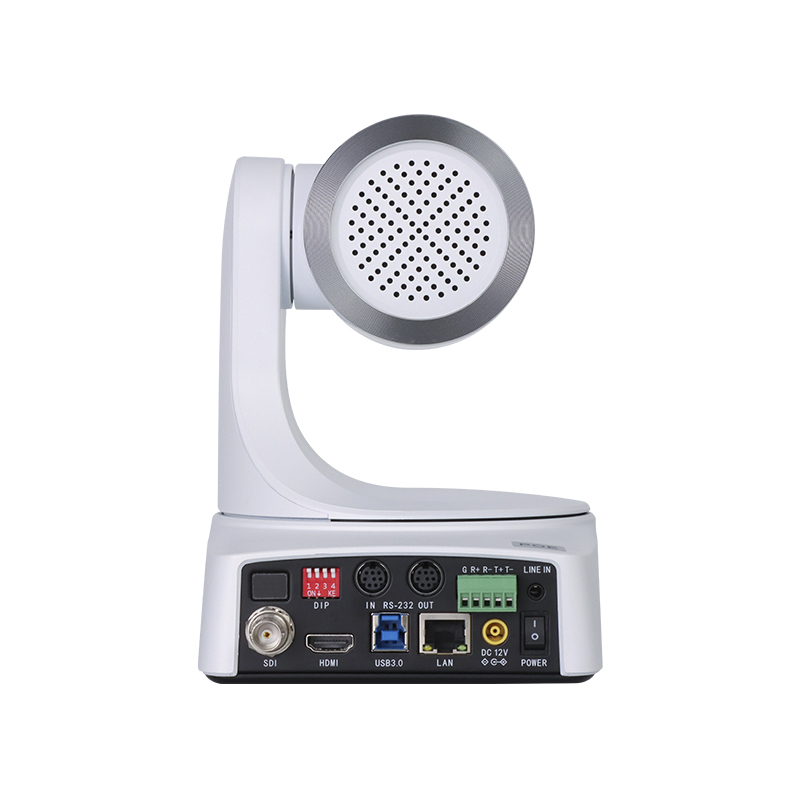

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power Consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
(W)224*(D)170*(H)174mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
