KT-HD43DR
Sur commande

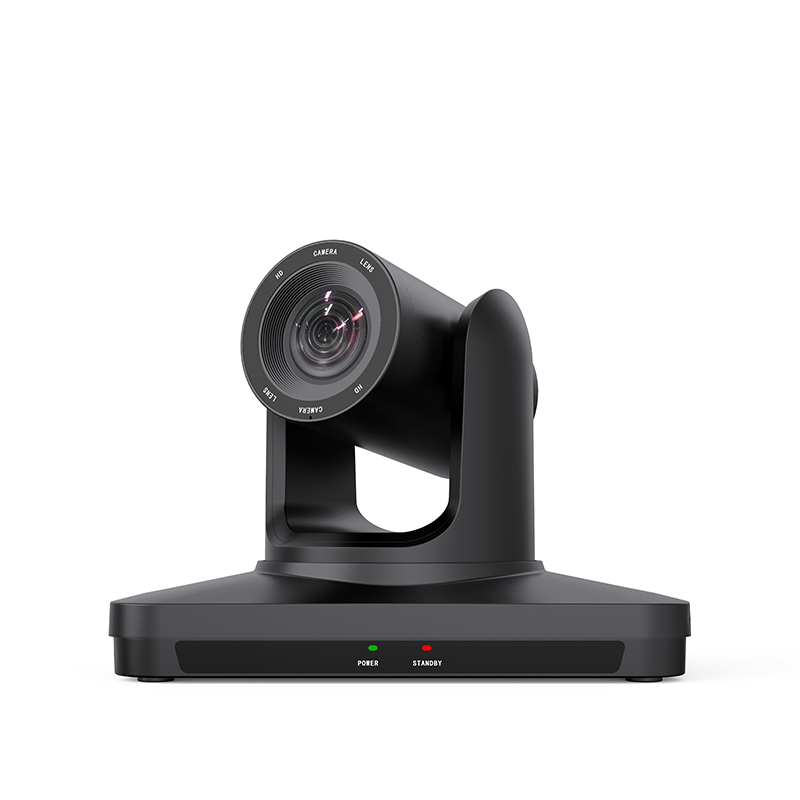

La KT-HD43DR est une caméra PTZ (Pan-Tilt-Zoom) HD 1080p de HDKATOV. Elle est dotée d'un zoom optique 12x, d'un capteur CMOS SONY et d'une nouvelle technologie de suivi humain par IA pour un cadrage et un suivi automatiques. Elle prend en charge plusieurs protocoles de contrôle (VISCA, PELCO P/D, Onvif), normes de compression vidéo (YUY2, H265, MJPG, H264) et protocoles réseau (ONVIF, SRT, RTSP, RTMP, RTMPS), ce qui la rend polyvalente pour diverses configurations de visioconférence et de streaming.
|
Image Parameters |
|
|
Resolution |
HDMI: 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
3.50 Megapixels, 2.07 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
HD43DA: 20X Optical Zoom, f=5.2mm(W)~104mm(T), F1.55~F3.13 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
HD43DA: 58.7°(W)~3.2°(T) |
|
Vertical View Angle |
HD43DA: 32.2°(W)~1.8°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
HD43DA: 0.1 Lux @ (F1.5, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
±168° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~90°/s |
|
Tilt Speed |
1°~90°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
1920*1080, 1280*960, 1280*720, 720*576, 720*480, 640*480 |
|
Sub Stream Resolution |
640*480, 640*360, 480*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

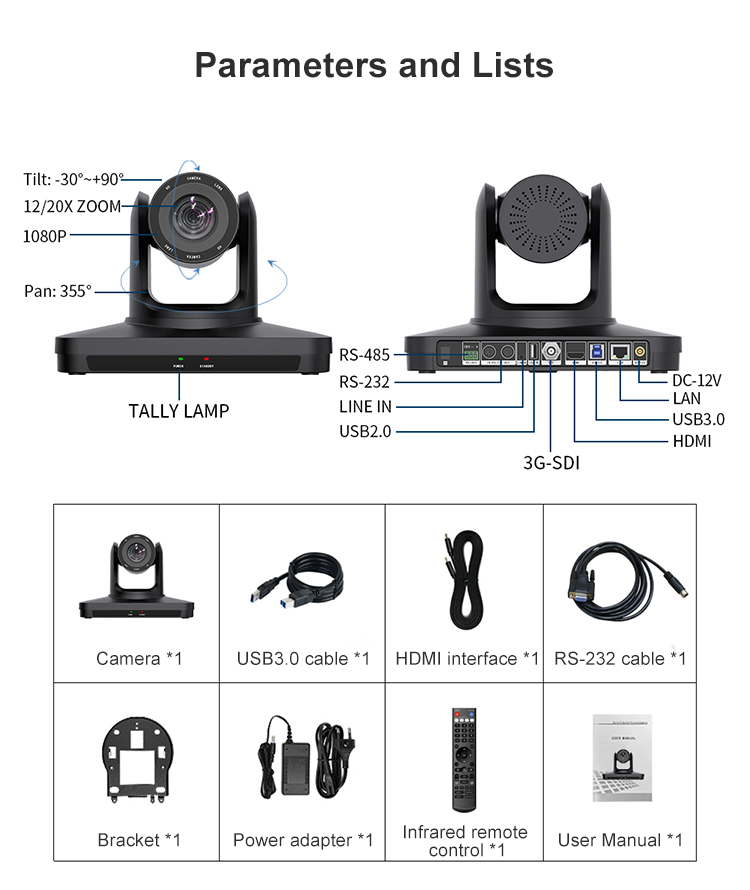

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power Consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
(W)240*(D)162*(H)173mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
