KT-UH43DH/DF
Sur commande

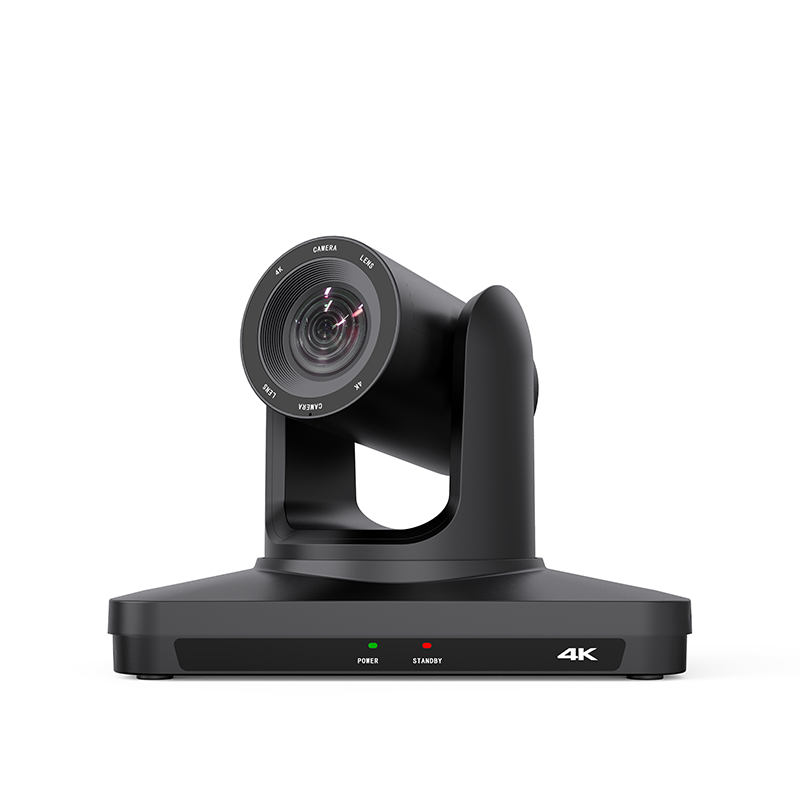

La KT-UH43DF est une caméra PTZ Ultra HD 4K30 de KATOVID (anciennement HDKATOVID). Elle est dotée d'un capteur d'image haute qualité de 8,29 millions de pixels et d'un zoom optique 12x, capable d'atteindre une résolution de 3840 x 2160 à 30 images par seconde. Elle offre un large champ de vision horizontal de 72,5°, un traitement d'image avancé pour la réduction du bruit et diverses options de connectivité, notamment USB 3.0, HDMI, LAN et 3G-SDI, ainsi que divers protocoles de contrôle comme VISCA, PELCO et Onvif, ce qui la rend idéale pour des applications comme le streaming en direct et les conférences téléphoniques
|
Image Parameters |
|
|
Resolution |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8 inch CMOS |
|
Pixel |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
UH43DF:12X optical zoom, f=4.1mm (W) ~ 49.2mm (T), F1.8~F2.68 UH43DH:20X optical zoom, f=5.2mm(W)~104mm(T), F1.55~F3.13 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
UH43DF: 72.5°(W)~6.57°(T) UH43DH: 58.7°(W)~3.2°(T) |
|
Vertical View Angle |
UH43DF: 42.06°(W)~3.76°(T) UH43DH: 32.2°(W)~1.8°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum illumination |
UH43DF: 0.1 Lux @ (F1.8, AGC ON) |
|
Exposure |
Auto, manual, aperture priority, shutter priority, brightness priority |
|
White Balance |
Automatic, indoor, outdoor, keyed, automatic tracking, manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
±168° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~90°/s |
|
Tilt Speed |
1°~90°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image freeze |
Support |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif , DHCP, VISCA Over IP |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main stream *1, auxiliary stream *1 |
|
Main stream resolution |
1920*1080 |
|
Sub Stream Resolution |
640*480, 640*360, 480*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
variable code rate, fixed code rate |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|
Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket 1 Line, USB2.0 extensional in, Type-A Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. 1 Line, RS422/485: 3-Core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
black |
|
Dimension |
(W)240*(D)162*(H)173mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
