KT-UH45GH/GF/GQ
Sur commande

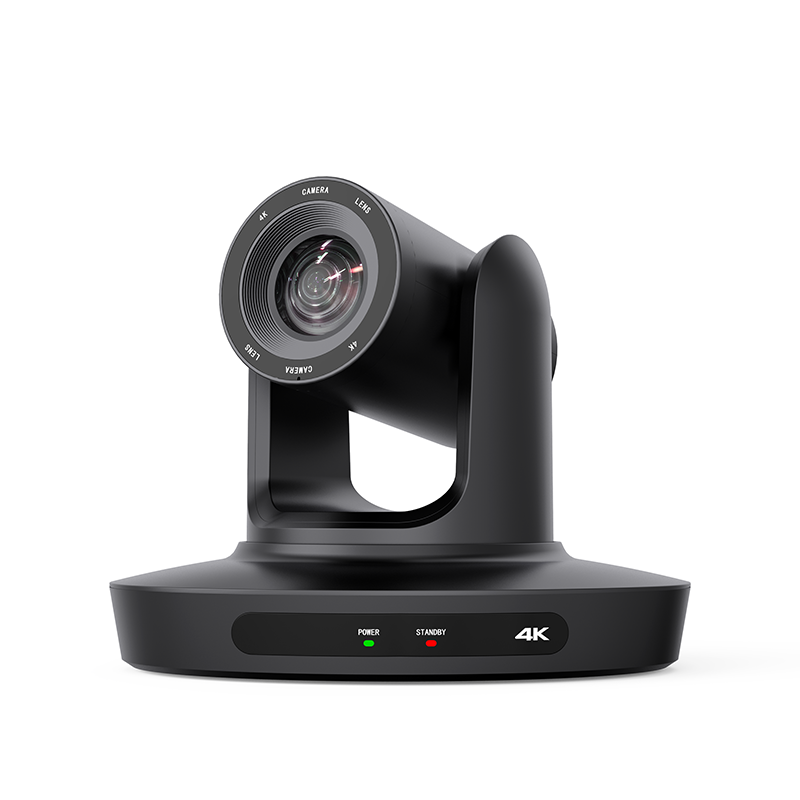

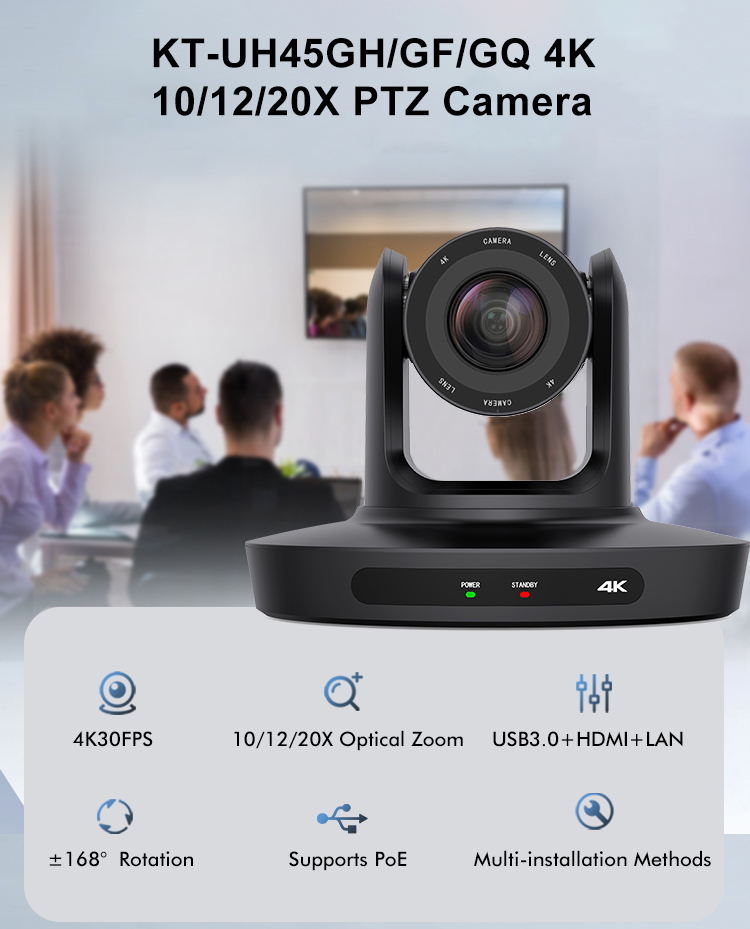

La KT-UH45GH/GF/GQ est une caméra 4K Ultra HD PTZ (Panoramique, Inclinaison et Zoom) de HDKATOV . Elle est dotée d'un zoom optique 20x, d'un capteur CMOS SONY pour une qualité d'image exceptionnelle et de fonctionnalités avancées comme le suivi par IA et le cadrage automatique. Elle prend en charge plusieurs interfaces vidéo, dont USB 3.0, HDMI et IP, ainsi que des protocoles réseau comme ONVIF, SRT et RTSP. Cette caméra est conçue pour diverses applications de streaming et de conférence en direct, notamment les services religieux en direct, les diffusions éducatives et la diffusion d'événements.
|
Image Parameters |
|
|
Resolution |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
UH45GQ: 10X Optical Zoom, f=4.2mm(W)~42mm(T), F1.76~F3.0 UH45GF: 12X Optical Zoom, f=4.1mm(W)~49.2mm(T), F1.8~F2.68 |
|
Horizontal View Angle |
UH45GQ: 67.5°(W)~7.6°(T) UH45GF: 72.5°(W)~6.57°(T) |
|
Vertical View Angle |
UH45GQ: 40.2°(W)~4.3°(T) UH45GF: 42.06°(W)~3.76°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
UH45GQ: 0.1 Lux @ (F1.8, AGC ON) UH45GF: 0.1 Lux @ (F1.8, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
±168° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~60°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
POE |
802.3af |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1 |
|
Main Stream Resolution |
1920*1080 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

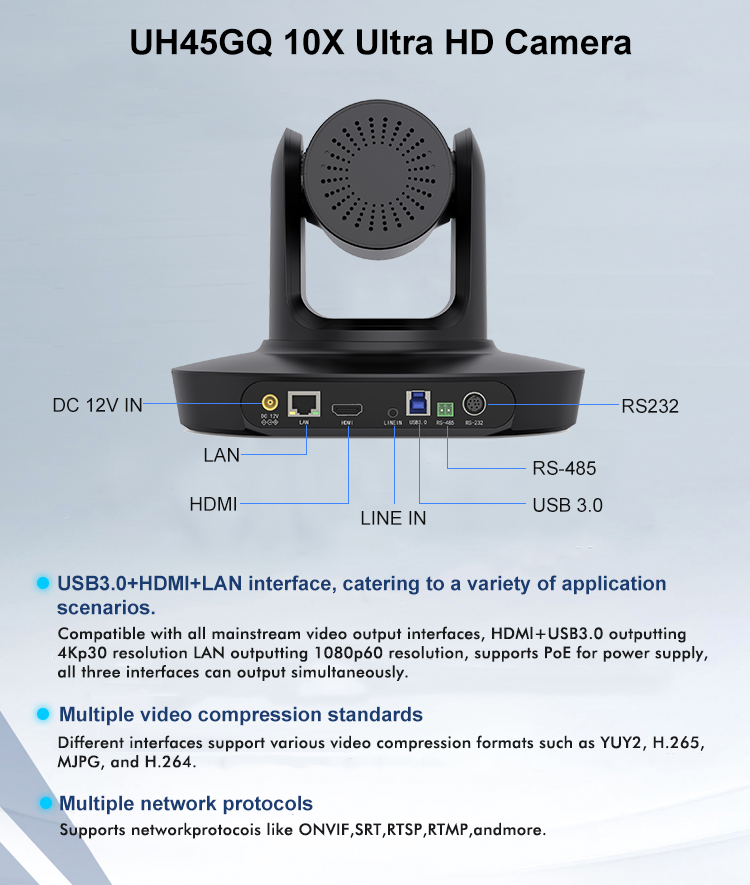

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power Consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
(W)224*(D)170*(H)174mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
