KT-UH86DH/86DHN
Sur commande

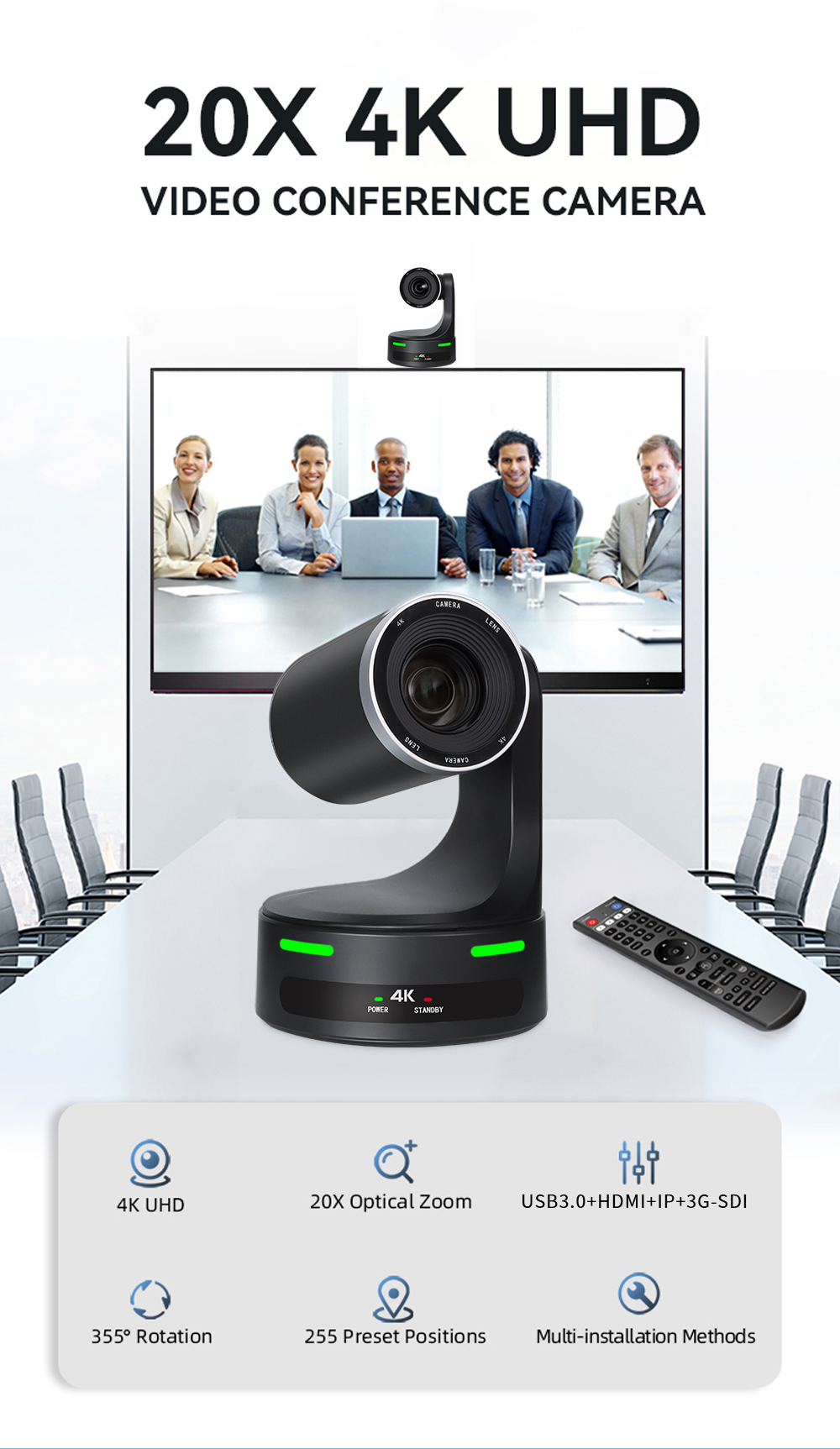

Le Kato Vision KT-UH86DH/86DHN estune caméra professionnelle 4K Ultra HD PTZ (Pan-Tilt-Zoom) dotée d'un capteur SONY, d'un zoom optique 20x et d'un suivi AI avancé pour un cadrage précis du sujet Il prend en charge plusieurs sorties, dont HDMI, USB 3.0, SDI et LAN, permettant ainsi la diffusion simultanée via différents protocoles comme NDI® et SRT. Conçu pour la diffusion en direct, la production vidéo et les conférences, il offre d'excellentes performances en basse lumière, une réduction du bruit et une alimentation par Ethernet (PoE) en option pour une installation flexible
|
Image Parameters |
|
|
Resolution |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
20X Optical Zoom, f=5.2m(W)~104mm(T), F1.55~F3.13 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
58.7°(W)~3.2°(T) |
|
Vertical View Angle |
32.2°(W)~1.8°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
0.1 Lux @ (F1.6, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
355° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~80°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE |
802.3af |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 (USB defaults to 4K is optional) |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |

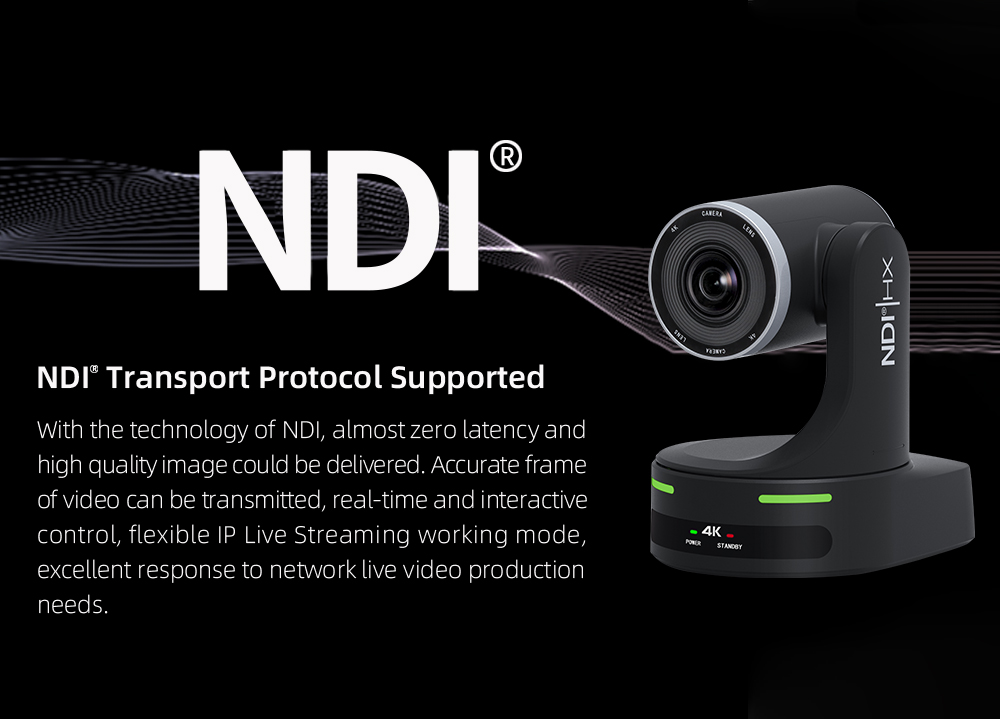

TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 1920*1080 |
|
Sub Stream Resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

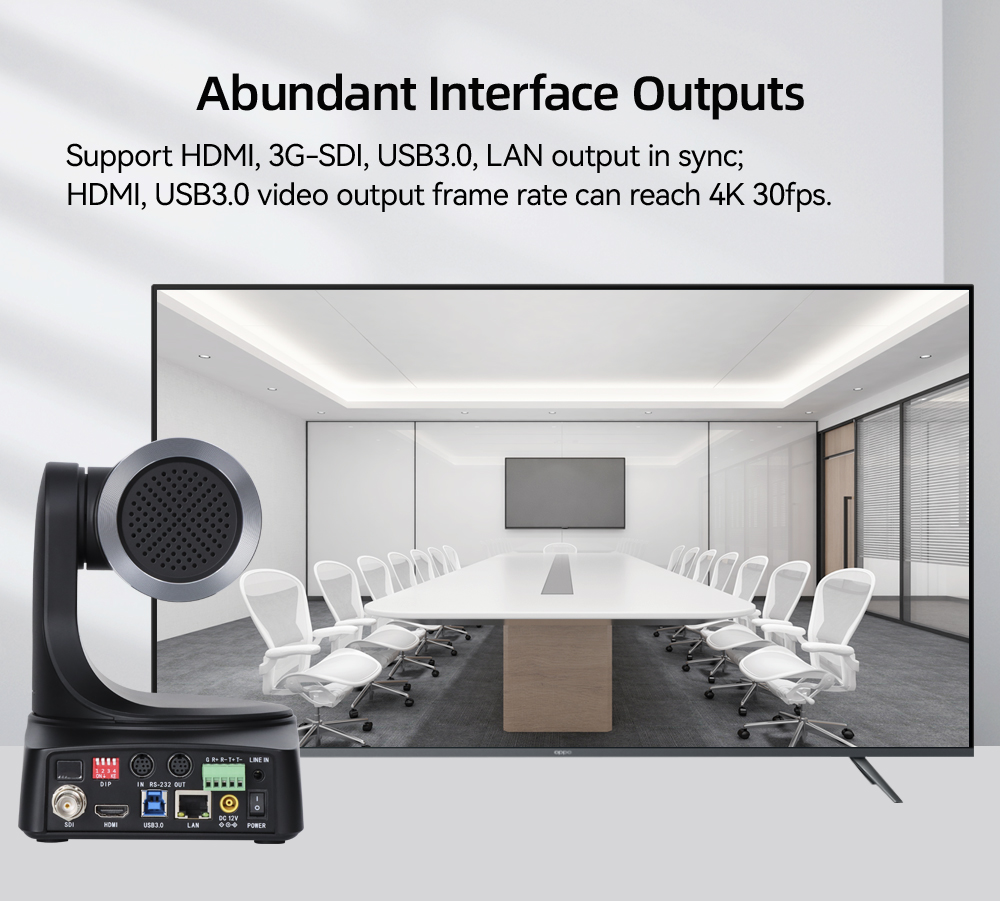

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/OUT: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.0A |
|
Power Consumption |
Max.12W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Dimension |
(W)134*(D)174*(H)187mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
