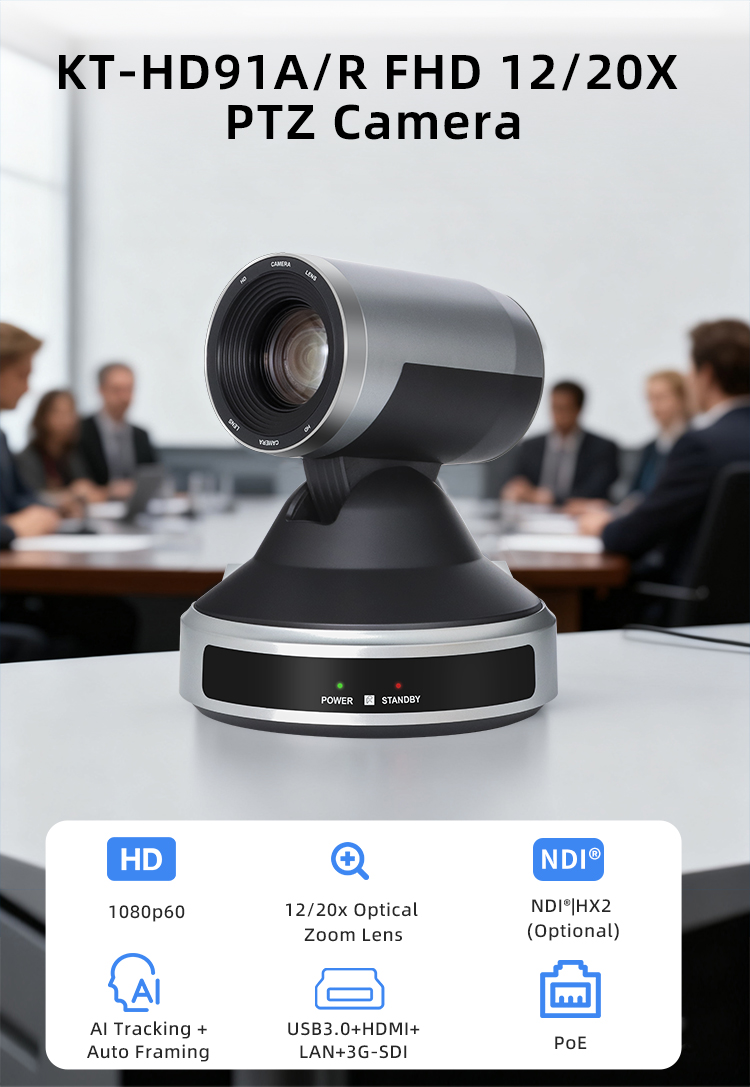

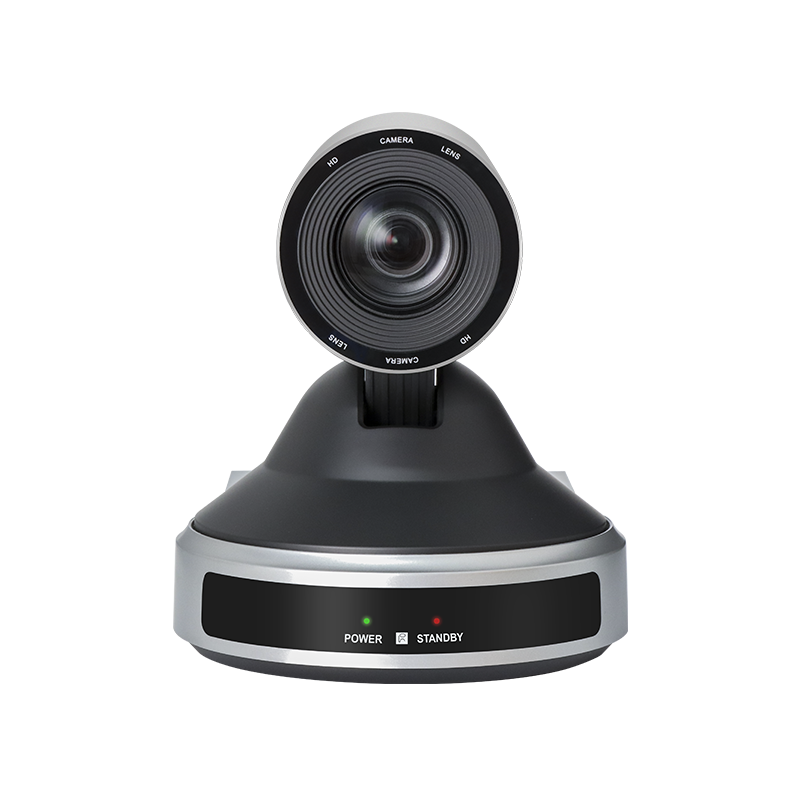

KT-HD91R/91A
Sur commande
Le Globalmediapro KT-HD91R/91A estune caméra Full HD, Pan-Tilt-Zoom (PTZ) conçue pour la visioconférence, l'apprentissage à distance et d'autres applications de surveillanceIl dispose d'un capteur CMOS progressif SONY 1/2,8", offre plusieurs interfaces de sortie vidéo (HDMI, SDI, USB, IP), prend en charge diverses normes de compression vidéo telles que H.264 et H.265 et peut être contrôlé via RS232, RS485 et des protocoles courants tels que VISCA et PELCO.
|
Image Parameters |
|
|
Resolution |
HDMI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
HD91R: 3.10 Megapixels, 2.07 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
HD91R: 12X Optical Zoom, f=3.9mm(W)~46.8mm(T), F1.6~F2.8 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
HD91R: 72.5°(W)~6.5°(T) |
|
Vertical View Angle |
HD91R: 32.2°(W)~1.8°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
HD91R: 0.1 Lux @ (F1.8, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
355° |
|
Tilt Angle |
-30°~+30° |
|
Pan Speed |
1°~80°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE |
802.3af (Optional) |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
1920*1080, 1280*960, 1280*720, 720*576, 720*480, 640*480 |
|
Sub Stream Resolution |
640*480, 640*360, 480*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|

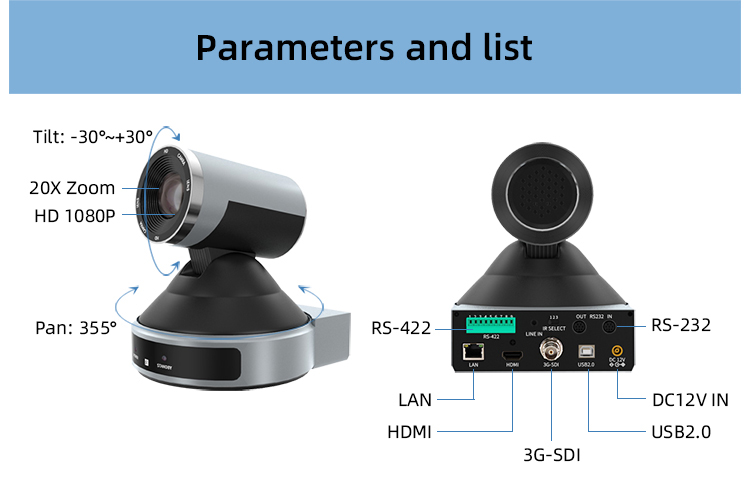

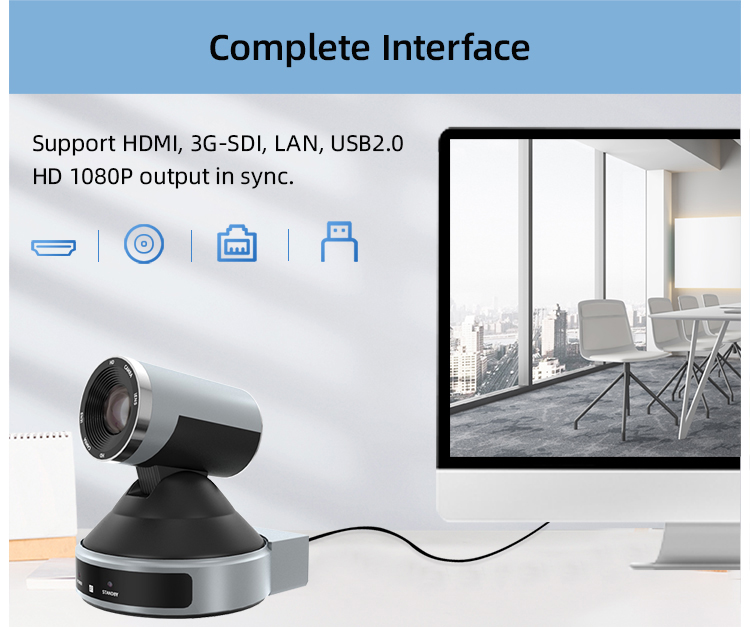

Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power Consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Silver gray |
|
Dimension |
(W)148*(D)181*(H)173mm |
|
Weight |
1.0kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
