KC50/KC50N
Sur commande

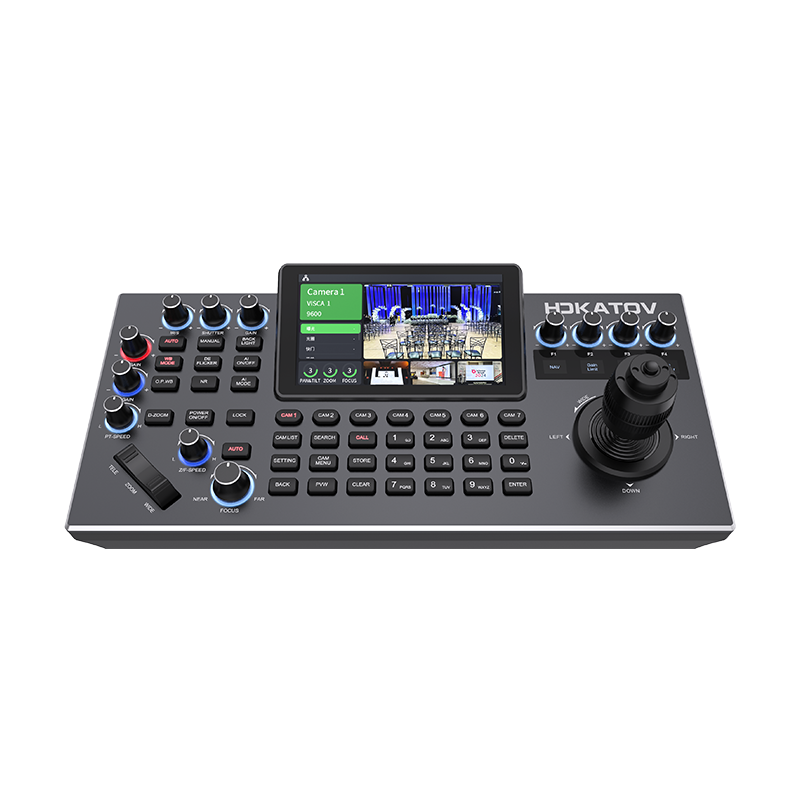

Le KC50 estun contrôleur de caméra multifonction Pan-Tilt-Zoom (PTZ) de HDKATOV, conçu pour la production vidéo professionnelle en offrant un contrôle précis, un aperçu vidéo en temps réel via un écran LCD de 5,5 pouces et la prise en charge de plusieurs caméras PTZSes principales caractéristiques comprennent un joystick de précision 4D, des boutons de fonction personnalisables, la prise en charge de divers protocoles de communication (VISCA, NDI, etc.) et des options de connectivité telles que POE, HDMI et les canaux tally. Son écran intégré affiche les paramètres de la caméra et offre un aperçu en temps réel, tandis que la prise en charge NDI en option permet une transmission avancée.
|
Specifications |
|
|
Joystick |
4D precision joystick |
|
Knob |
3D knob, support scale rotation to adjust the parameters, support customized functions |
|
Preview |
Supports real-time preview of the camera feed and preview of preset position images. |
|
Silicone Buttons |
High-quality silicone buttons support white and red two-color backlight |
|
Screen |
5.5” LCD color display |
|

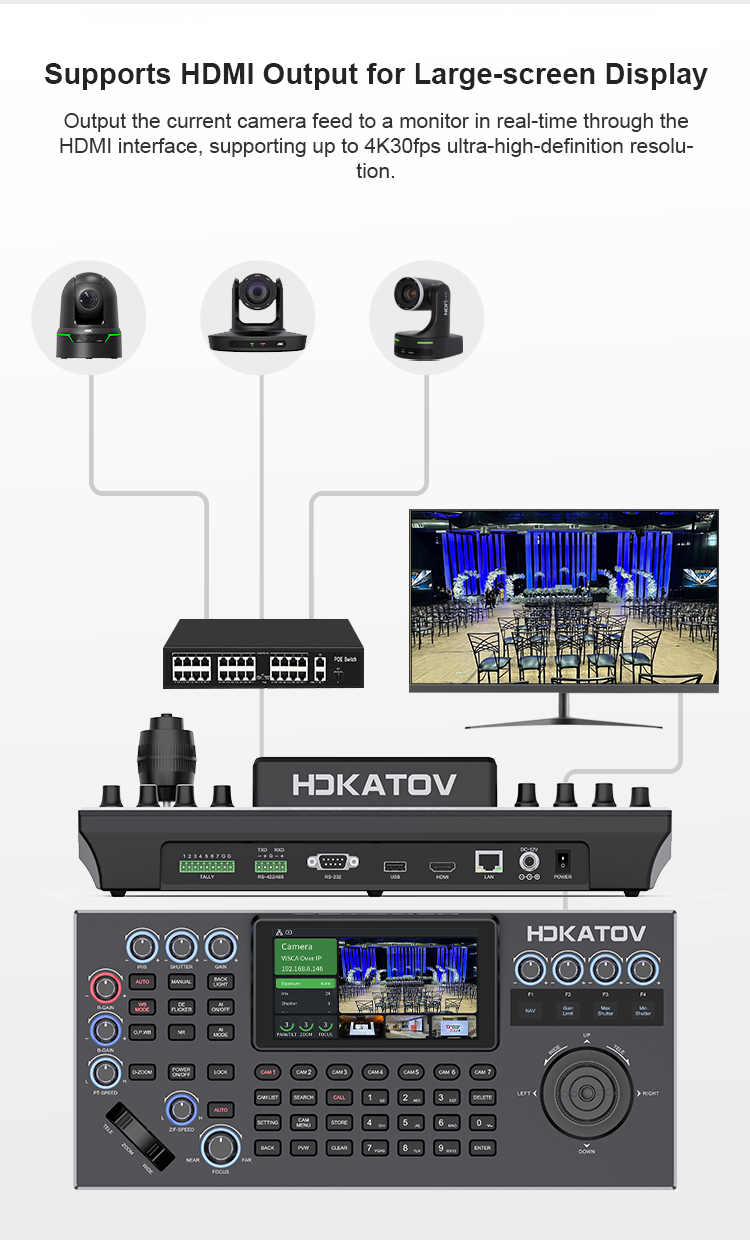

Display |
The HDMI interface supports displaying output at 4Kp30 Ultra HD resolution |
|

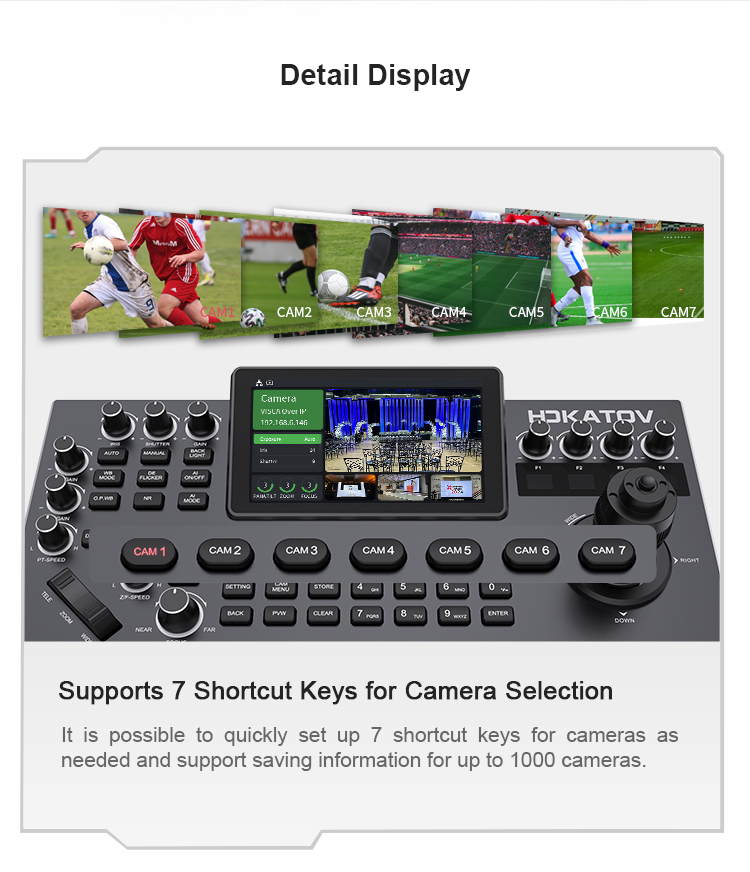

Shortcuts |
Support 7 camera shortcut settings |
|
Sound |
The sound of the button prompts on/off |
|
Lock |
Support one-click locking function |
|
Max. No. of cameras can be saved |
1000 |
|
Max. No. of preset positions can be saved |
255 |
|
Customized Knob |
|
|
Navigation |
Support |
|
Gain Limit |
Support |
|
Max. shutter speed |
Support |
|
Min. shutter speed |
Support |
|
Auto exposure speed |
Support |
|
Exposure compensation |
Support |
|
BLC |
Support |
|
IR switch filter |
Support |
|
ND filter |
Support |
|
WBC speed |
Support |
|
Gama curve |
Support |
|
Gama offset |
Support |
|
Gama Pattern |
Support |
|
Anti-flicker |
Support |
|
Noise reduction mode |
Support |
|
Noise reduction value |
Support |
|
User instructions |
Support |
|
Control |
|
|

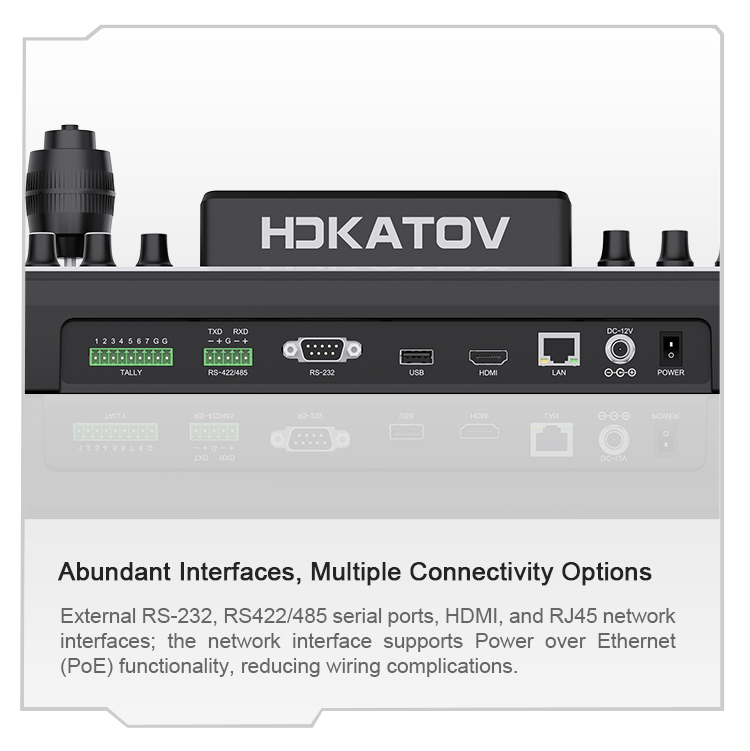

Control interface |
RJ45(Support POE and NDI®| HX2 (Optional)), RS-232, RS-422/485 |
|
IP control protocol |
Onvif, VISCA Over IP, VISCA TCP, NDI® ( Optional ) |
|
Serial port control protocol |
VISCA, Pelco D, Pelco P |
|
Power Supply |
|
|
Input Voltage |
12V |
|
Input Current |
0.7A |
|
POE |
802.3af |
|
Rated power |
8.4W |
|
Other |
|
|
Tally |
Support up to 7 channels |
|
HDMI Interface |
External Display Device |
|
USB Interface |
Upgrade using an external USB flash drive |
|
Usage Environment |
Indoor |
|
Working Temperature |
-10°C~40°C |
|
Storage Temperature |
-20°C~60°C |
|
External Dimensions |
354*165*121mm (including joystick height) |
|
Weight |
1.5kgs |
