KC10/KC10N

Sur commande

En stock

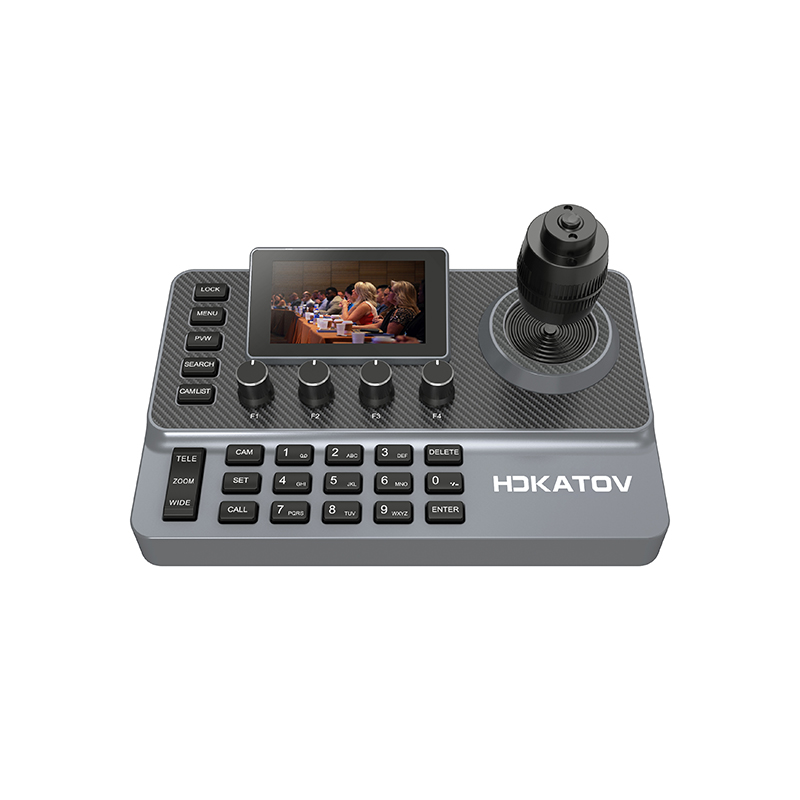

Le KC10 est un contrôleur PTZ (Pan-Tilt-Zoom) multifonctionnel équipé d' un joystick 4D, de boutons personnalisables et d'un écran couleur intégré de 3 pouces qui affiche le flux vidéo en temps réel. Il prend en charge divers protocoles de communication comme VISCA, Onvif, et NDI, et propose des interfaces réseau (RJ45, PoE) et des sorties HDMI pour le contrôle et l'affichage à distance.

Keyboard Parameters

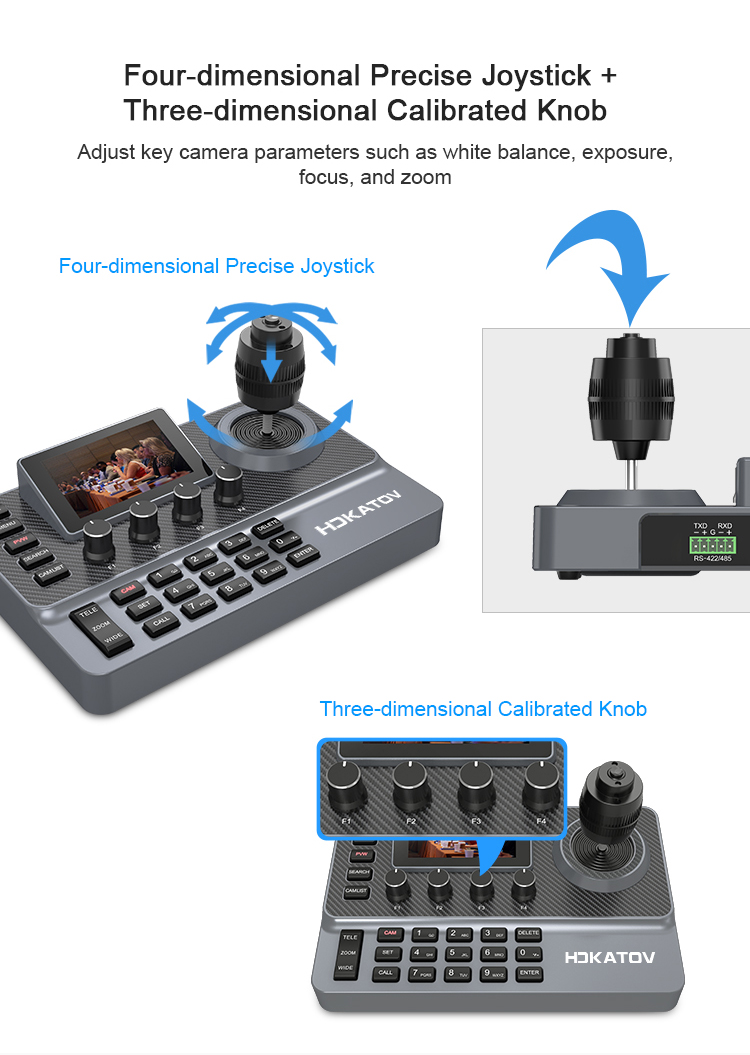

Joystick	4D precision Joystick
Knobs	3D knobs, Supports calibrated parameter adjustments through rotation.
Buttons	High-quality silicone buttons, support white and red two-color backlight

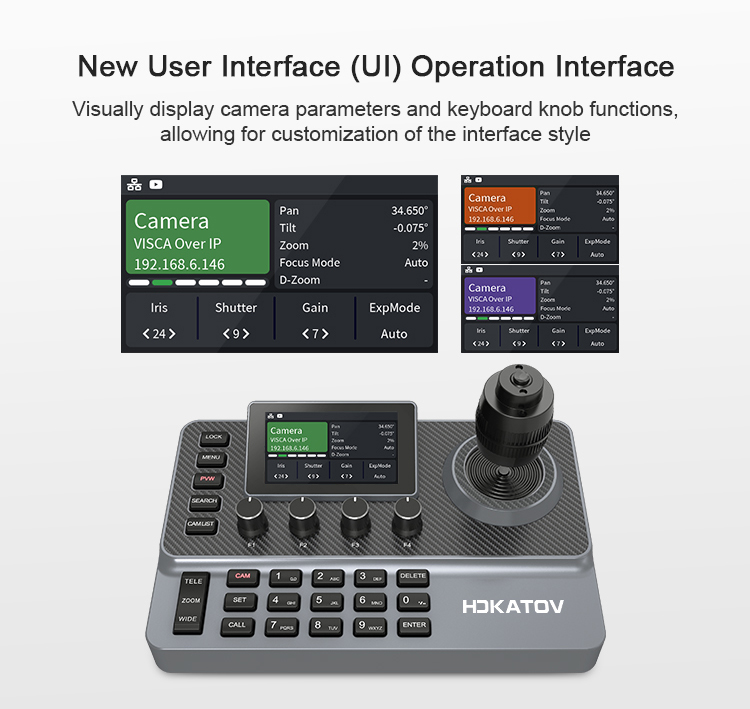

Screen	3″ LCD color display
Button Prompt Tone	Button sound prompt On/Off
Lock Button	Support one-key lock function
Max. Control Quantity	1000
Max.Preset Position	255
Customized Knob
Horizontal Speed	Support
Tilt Speed	Support
Zoom Speed	Support
Aperture	Support
Shutter	Support
Gain	Support
Exposure Mode	Support
Red Gain	Support
Blue Gain	Support
Keying	Support
Wb Mode	Support
Wb Speed	Support
Gain Limit	Support
Maximum Shutter Speed	Support
Minimum Shutter Speed	Support
Auto Exposure Speed	Support
Exposure Compensation	Support
Blc	Support
Ir Filter	Support
Nd Filter	Support
Gamma Curve	Support
Gamma Offset	Support
Gamma Pattern	Support
Anti-Flicker	Support
Noise Reduction Mode	Support
Noise Reduction Value	Support
Ptz Reset	Support
Digital Zoom	Support
Auto Focus	Support
Manual Focus	Support
Camera	Support
Camera Select	Support
User Instructions	Support
Control

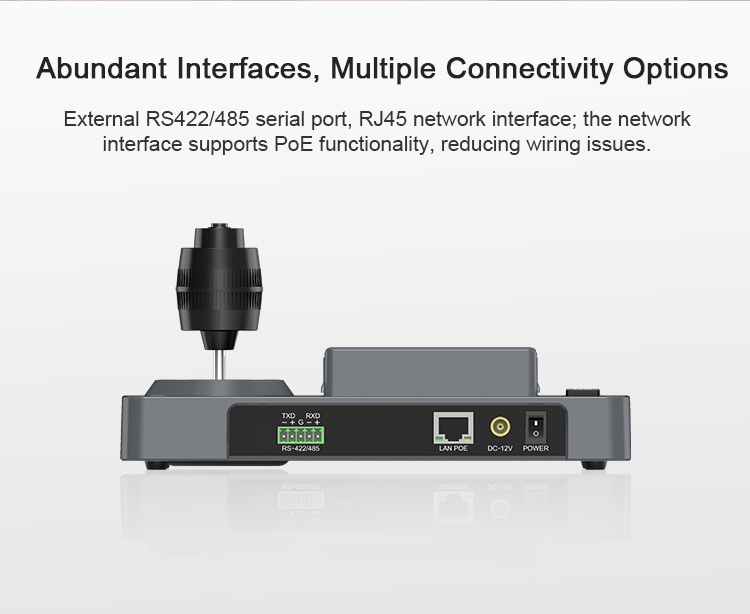

Control Interface	RJ45 (supports POE and NDI®\|HX2 optional)、RS-422/485

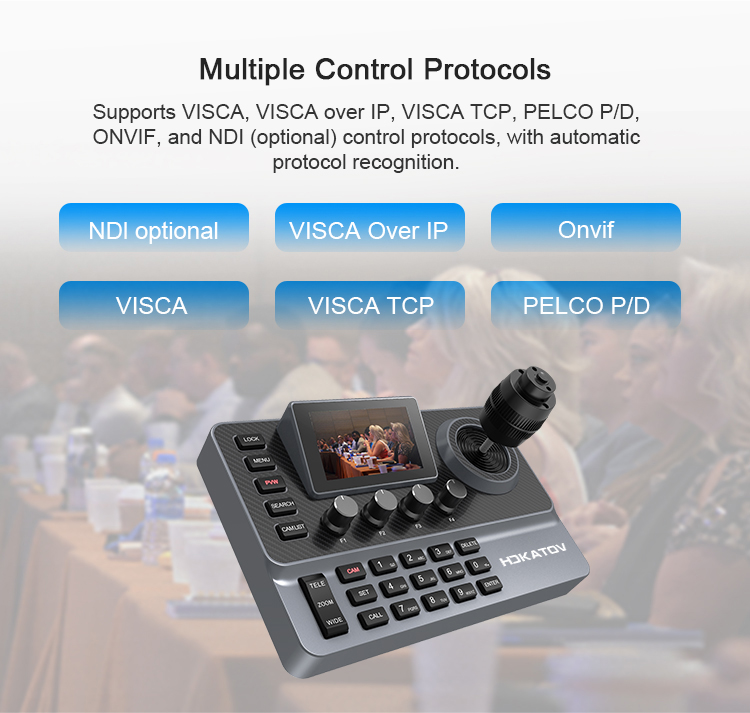

IP Control Protocol	Onvif, VISCA Over IP, VISCA TCP, NDI® (optional)
Serial Port Protocol	VISCA, Pelco D, Pelco P
Power Supply
Input Voltage	12V
Input Current	0.25A
POE	802.3af
Rated Power	3W
General Specifications
Operating Environment	Indoor
Operating Temperature	-10°C~40°C
Storage Temperature	-20°C~60°C
Dimension	(W)210(D)138(H)101mm (Joystick height is included)
Weight	0.8 kg
