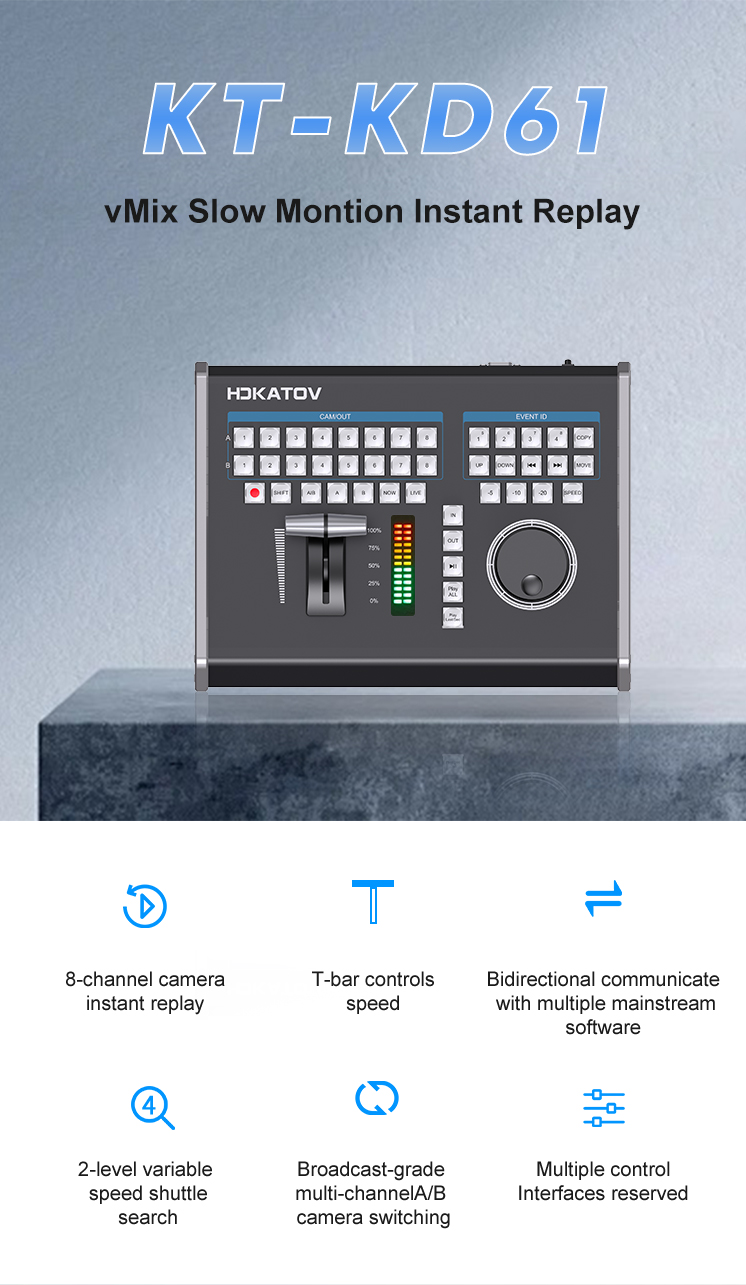

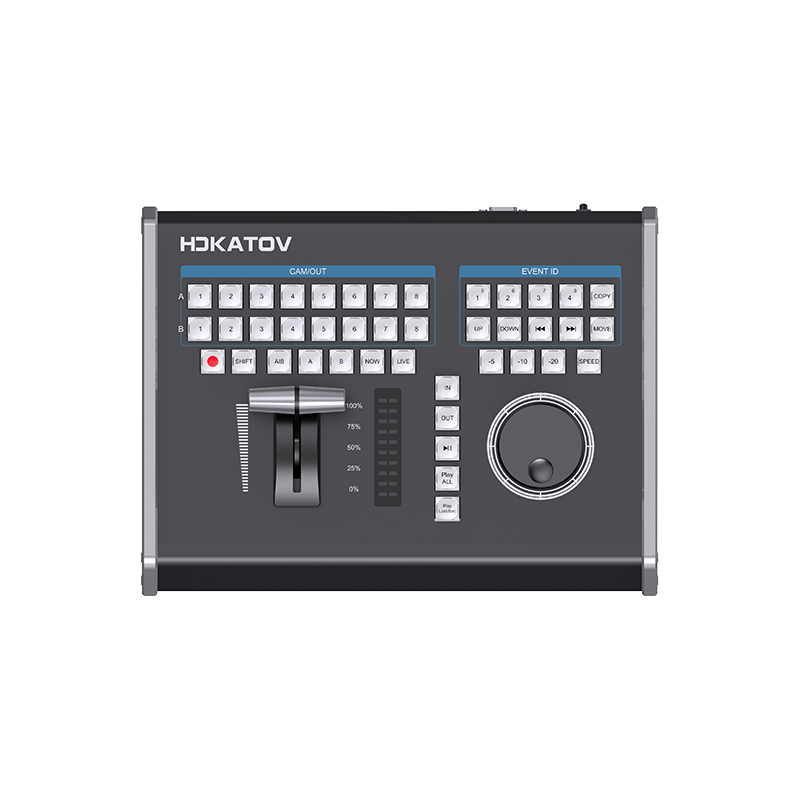

HDKATOV KT-KD61
Sur commande
|

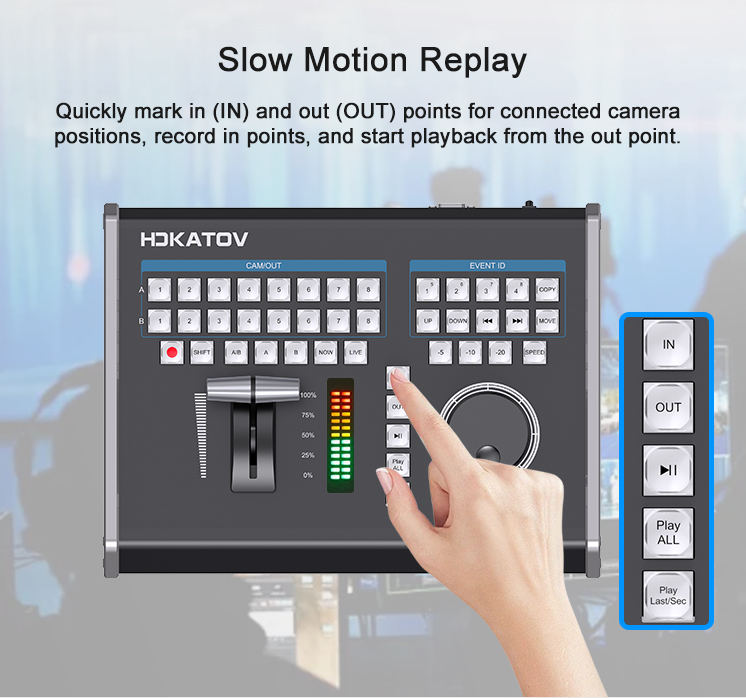

Main Function |
|
|
Signal Source |
8-channel A and B camera |
|
Backlit function keys |
Red and green-two colorful crystal buttons |
|
T-BAR fader |
T-type speed control handle |
|

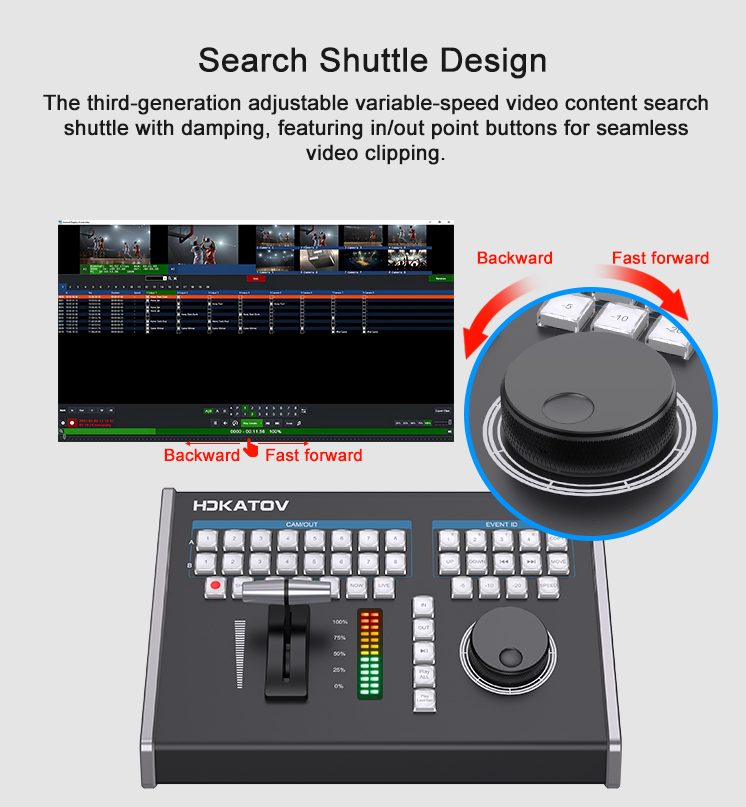

Jog Shuttle |
2-Level Variable-Speed Jog Shuttle |
|
Supported Software |
vMix, SINSAM and other MIDI communication compatible software can be used |
|
Control |
|
|
Control Interface |
USB, RJ45 (Reserved), RS232 (Reserved) |
|
Power Supply |
|
|
Input Voltage |
USB 5V |
|
Input Current |
0.15A |
|
Rated Power |
1W |
|
Powered by USB |
Support(rely on the USB power supply capability of the computer) |
|
Others |
|
|
Environment |
Indoors |
|
Operating temperature |
-25℃~60℃ |
|
Humidity environment |
Less 90% |
|
Dimensions |
325*246*98mm |
|
Weight |
2.5KG |
|
Material |
Aluminum Alloy |
|
Color |
Black |
