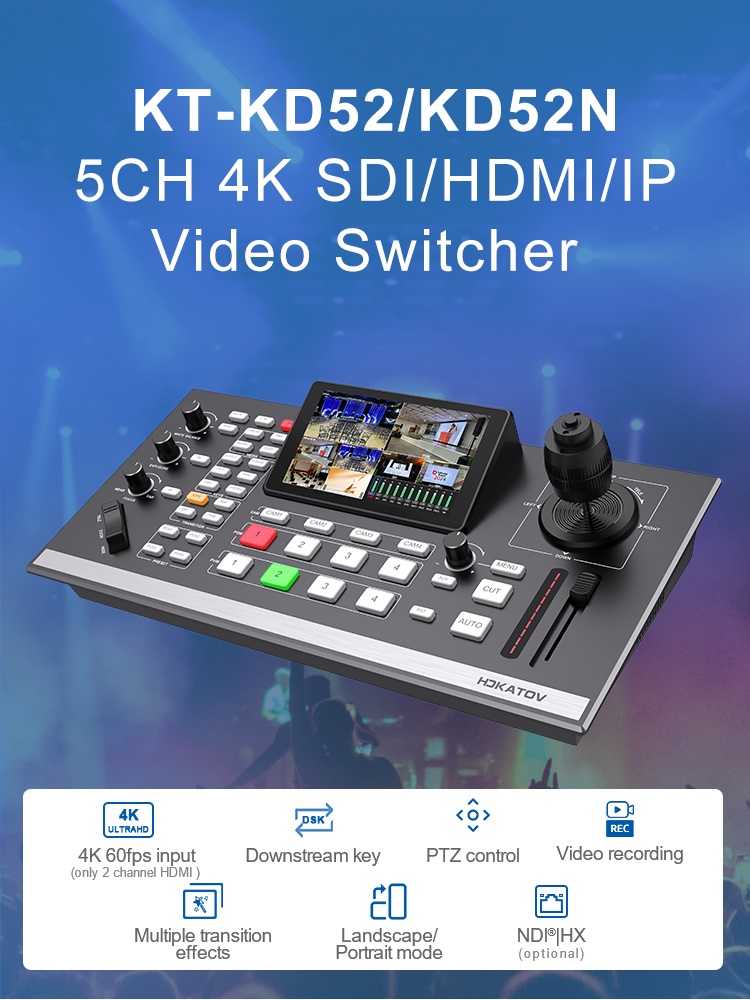

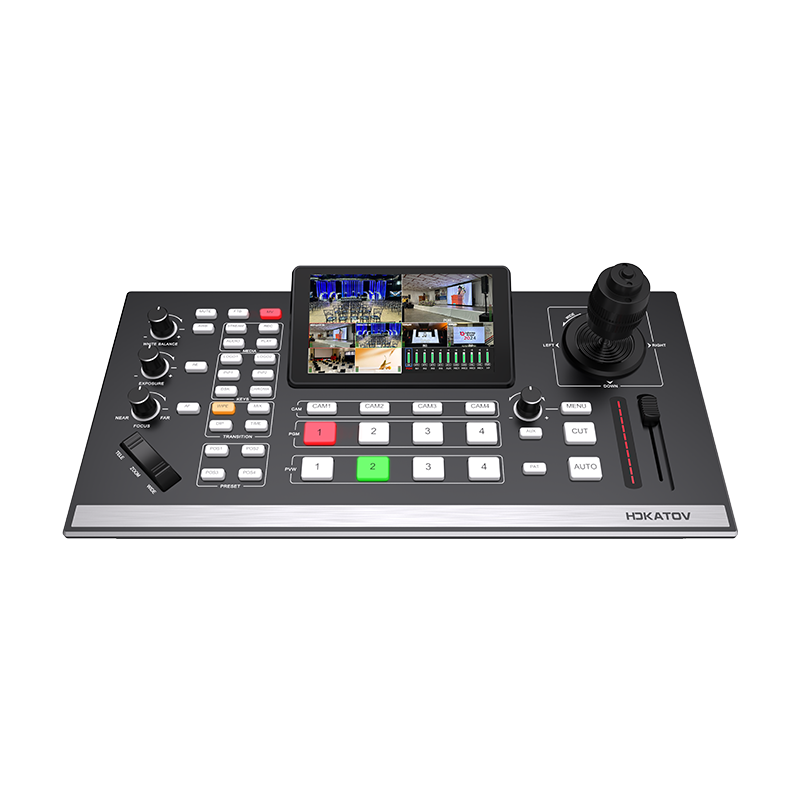

KT-KD52/KD52N

Sur commande

En stock

Le KT-KD52/KD52N est un mélangeur de production et de streaming vidéo en direct professionnel et compact à 5 canaux Doté d'un écran LCD intégré de 5,5 pouces pour la surveillance, de multiples entrées vidéo (dont 4 HDMI/SDI), de la prise en charge NDI®|HX (en option) et de diverses options de sortie (HDMI, SDI, LAN, UVC), il offre des outils de production intelligents comme le PiP, des fonctions d'incrustation (chroma/luma), des effets de transition et la diffusion en direct simultanée sur deux plateformes (RTMP/RTMPS), ainsi qu'un contrôle de caméra PTZ intégré via VISCA sur IP. De plus, il prend en charge l'enregistrement MP4 sur cartes USB/SD et la gestion à distance via une interface web

Key Features
Video input interface	4 channels HDMI or 4 channels SDI, 1 channel USB (local media video) or 1 channel NDI

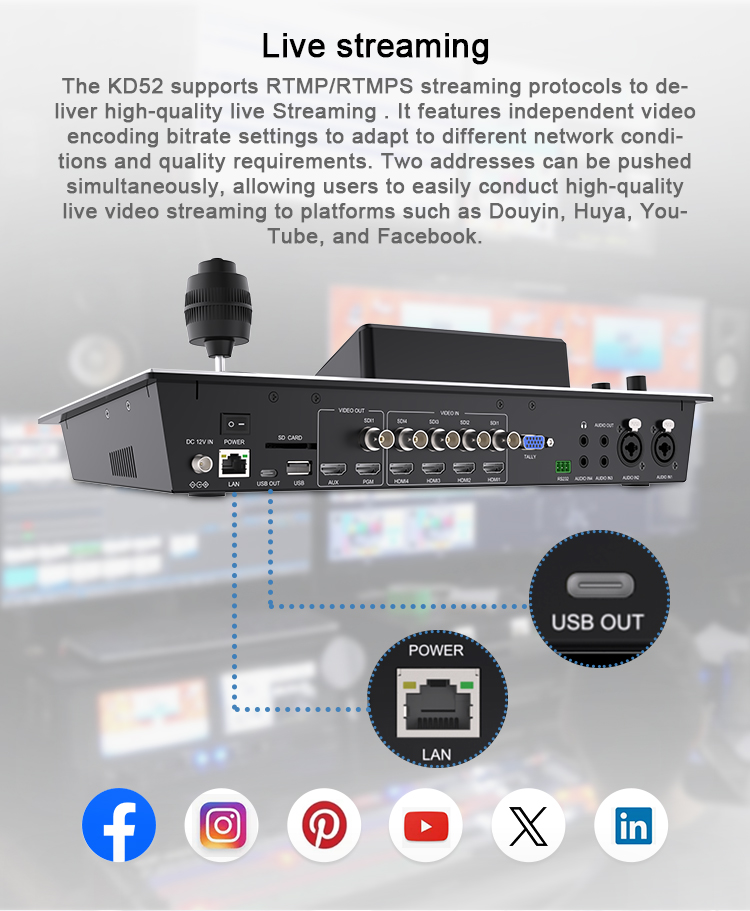

Video output interface	2 channels HDMI and 1 channel SDI output simultaneously, support PGM, PVW, MultiView 1 channel USB output, USB supports audio and video output 1 channel IP output, supports RTMP Supports UVC and IP output simultaneously
Audio input interface	4 channels HDMI audio input 2 channels 3.5mm Line IN input 2 channels XLR audio interface input, supports phantom power
Audio output interface	2 Sets of 3.5mm Headphone Monitoring Jacks
RJ45 Ethernet	RJ45x1, Ethernet supports 10/100/1000 BaseT, can be used for live streaming, background settings, software updates
Other interfaces	1xUSB TYPE C for UVC video output 1xUSB TYPE A; external USB storage (FAT32, NTFS, exFAT) 1xSD CARD for video recording storage
Format parameters
Video Input Format	2160p 60/59.94/50/30/29.97/25/24/23.98(HDMI2.0 interface) 1080p60/59.94/50/30/29.97/25/24/23.98 1080i60/1080i50
Video output Format	1080p60/59.94/50/30/29.97/25/24/23.98 1080i60/1080i50
HDMI Color Space	RGB/YUV
USB Capture Output	Maximum 1080P60, support USB audio output
Local file playback	Video file format: MP4 Image file format: PNG, JPG, BMP
File Recording Format	MP4
Storage Media	Support USB Flash Drive / Portable HDD Storage (FAT32, NTFS, exFAT) SD card video recording storage
File recording resolution	1920×1080
Real-time playback of files	support
Specifications
Video System	FULL HD
Monitor screen	5.5 inches
Monitor Minimum Resolution Requirements	1920x1080 pixels
Logo	2 set

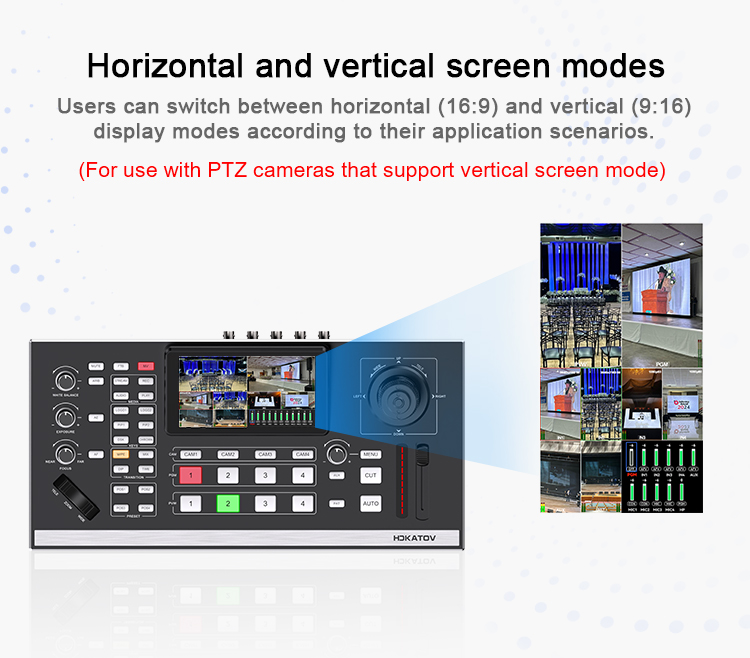

Operation Mode	Supports switching between horizontal (16:9) and vertical (9:16) screens
Tally	Support DB-15
Transition Switching	CUT & AUTO
Transition Effects	30 special effects, the switching time can be set
PIP Model	Support PIP and POP modes, and can cut and adjust the video screen size at will
Layers	PGM can support 8 layers. Layer editing supports: size, position, graphic mask, area mask
Keying	Chroma key, Luma Key
Language Mode	Simplified Chinese, English
Audio
Mixer	Multi-channel audio virtual mixer, each channel can be switched on and off and set mode
Analog Audio Input	2 channels 3.5mm Line IN input, gain range (-60-24db) 2 channels XLR audio interface input
Analog Input Delay	0-500ms
Analog audio output	1 channel unbalanced stereo output line out 1 channel headphone monitor output
Audio input level range	0dB~60dB
Audio sampling rate	48kHz
Audio Format	AAC encoding; streaming and recording 2 channels, 16bit, compression bitrate support: 128k (default), 48k, 64k, 96Kbps;
PTZ control
PTZ control	VISCA Over IP Control Protocol
PTZ control quantity	4 channels
PTZ Camera Control Method	4D Joystick
Aperture Control	Support
Focus Control	Support manual/automatic
Exposure control	Support manual/automatic
Exposure mode	Red gain value, blue gain value adjustment
Network
Remote Control	Support mobile phone control, WEB page control
Firmware Upgrade	Connect directly to a Windows computer using the Ethernet interface.
Power supply
Input voltage	External 12V power supply
Input Current	1.3A (max)
PoE	Not supported
Rated Power	14W (max)
Other
Usage Environment	indoor
Operating Temperature	0~40℃
Storage temperature	-10~60℃
Color	black
Dimensions	(Width) 385* (Depth) 188* (Height) 127mm (including joystick height)
Quality	2.2kg
