HDKATOV KT-KD51
Sur commande

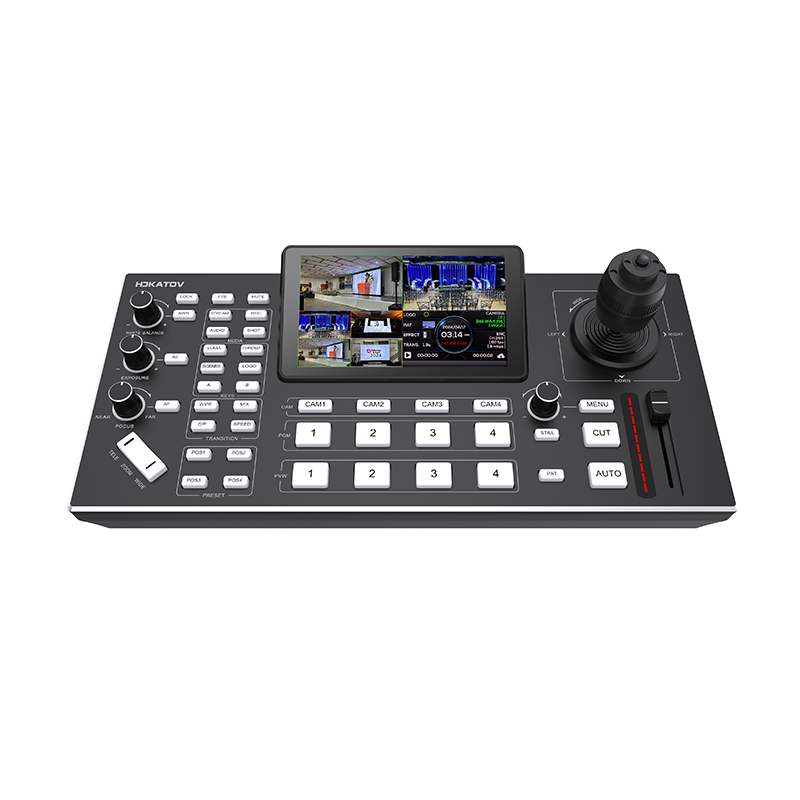

Le Kato Vision (KTV) KT-KD51 estun commutateur vidéo en direct HDMI à 4 canaux avec un écran LCD FHD intégré de 5,5 pouces pour une surveillance et un contrôle intégrés Il est équipé d'un fader en T pour les transitions, d'un joystick 4D pour le contrôle des caméras PTZ via VISCA sur IP, ainsi que d'incrustations chroma et luma intégrées pour des diffusions de qualité professionnelle. L' appareil prend en charge le streaming RTMP, l'enregistrement vidéo MP4 et le contrôle à distance via une interface web d'arrière-plan, ce qui en fait une solution polyvalente tout-en-un pour la production en direct.
|

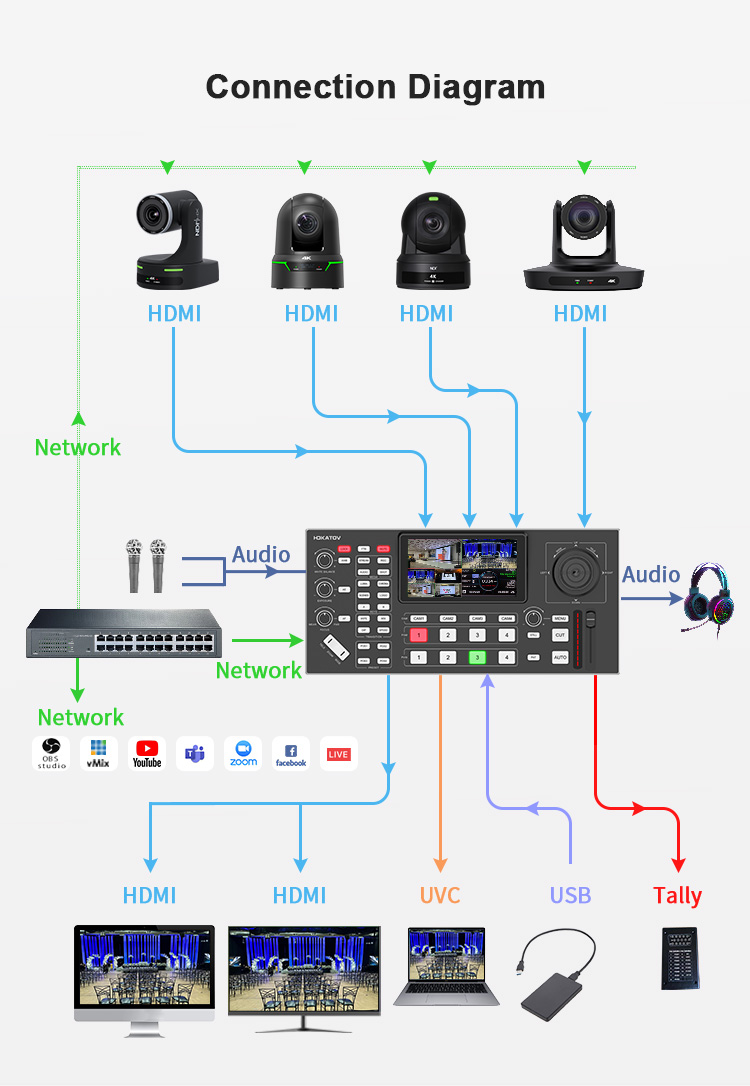

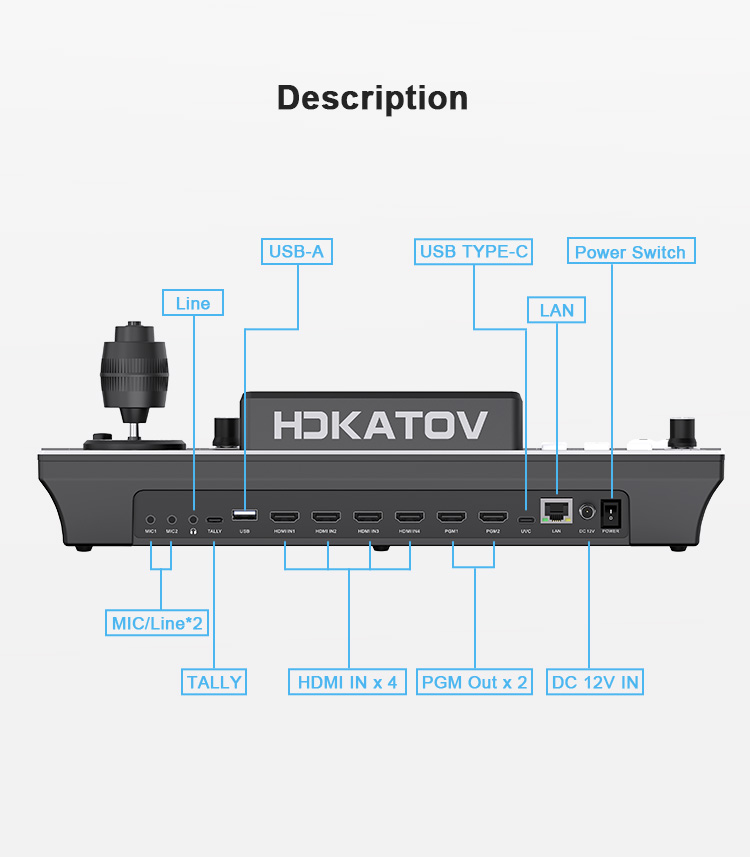

Device Interface |
|
|
Video Input Interface |
4 channels HDMI |
|
Video Output Interface |
2 Channels HDMI outputs simultaneously, supports PGM |
|
1 Channel USB output, USB supports audio and video output |
|
|
1Channel IP output, supports RTMP, RTMPS |
|
|
Support UVC and IP simultaneous output |
|
|
Audio Input Interface |
4 sets of HDMI audio inputs |
|
2 channels 3.5mm MIC IN input |
|
|
Audio output Interface |
1 set of 3.5mm headphone monitoring jack |
|
RJ45 Ethernet |
RJ45x1, Ethernet supports 10/100/1000 BaseT, which can be used for live streaming, background settings, and software updates |
|
Computer Interface |
1xUSB TYPE C for UVC video output |
|
1xUSB TYPE A; external USB storage (FAT32, NTFS, exFAT) |
|
|
Format Parameters |
|
|
Video Input Format |
1080p 60/59.94/50/30/29.97/25/24/23.98 |
|
1080 i50/1080 i60 |
|
|
720p 60/59.94/50/30/29.97/25/24/23.98 |
|
|
576i/480i/576p/480p |
|
|
Video Output Format |
1080p 60/50/30/25/24 |
|
1080i50/1080i60 |
|
|
HDMI Color Space |
RGB/YUV |
|
USB Acquisition Output |
Max: 1080P60，support USB audio output |
|
Local File Playback |
Video file format: MP4 |
|
Image file format: PNG，JPG，BMP |
|
|
File Recording Format |
MP4 |
|
Storage Media |
Support U disk storage（FAT32, NTFS, exFAT） |
|
File Recording Resolution |
1920×1080 |
|
File Real-time Playback |
Support |
|
Specifications |
|
|
Video System |
FULL HD |
|
Monitor Screen |
5.5inches |
|
Monitor Minimum Resolution Requirements |
1920x1080 pixels |
|
LOGO |
1 set |
|
Clock Display |
Support |
|
Operating Mode |
Horizontal screen(16:9) |
|
Tally |
Support (Tally control box needs to be purchased separately) |
|
Stunt Switch |
CUT & AUTO |
|
Special Effects |
36 kinds of stunts, the switching duration can be set |
|
PIP Model |
Support（8 channels PIP and POP model） |
|
Layers |
Background, A, B, LOGO multiple layers |
|
Layer editing support: size, position, graphics mask, area mask |
|
|
Keying |
Chroma key Luma Key |
|
Language Mode |
Simplified Chinese, English |
|
Audio |
|
|
Mixer |
4-channel audio virtual mixer with switch and mode settings for each channel |
|
Analog Audio Input |
2 channels of 3.5mm MIC IN input, gain range（-60-24db) |
|
Analog Input Delay |
0-500ms |
|
Analog Audio Output |
1 Channel unbalanced stereo output line out |
|
1 Channel headphone monitoring output |
|
|
Audio Input Level Range |
0dB~60dB |
|
Audio Sample Rate |
48kHz |
|
Audio Format |
AAC encoding; streaming and recording 2 channels, 16bit, compression bit rate support: 128k (default), 48k, 64k, 96Kbps; |
|
PTZ Control |
|
|
PTZ Control |
VISCA Over IP control protocol |
|
PTZ Control Quantity |
4 Channels |
|
PTZ Camera Control Method |
4D Joystick |
|
PTZ Aperture Control |
Support |
|
PTZ Focus Control |
Support, manual/auto |
|
PTZ Exposure Control |
Support, manual/auto |
|
PTZ Exposure Mode |
Red gain value, blue gain value adjustment |
|
TALLY Instruct |
Equipped with the tally control box, the camera can be switched and controlled synchronously with tally lights. |
|
Remote Control |
Support mobile phone and WEB web page control |
|
Software Update |
|
|
Firmware Upgrade |
Connect directly to a Windows computer using the Ethernet interface. |
|
Power Supply |
|
|
Input Voltage |
External 12V2A power supply |
|
Input Current |
0.8A（Max） |
|
POE |
Non support |
|
Rated Power |
10W（Max） |
|
General Specifications |
|
|
Usage Environment |
Indoor |
|
Operating Temperature |
0℃-40℃ |
|
Storage Temperature |
-10℃-60 degrees |
|
Color |
Black |
|
Dimension |
(W)354* (D)165* (H)121mm（Including rocker height） |
|
Weight |
2.0kg |
