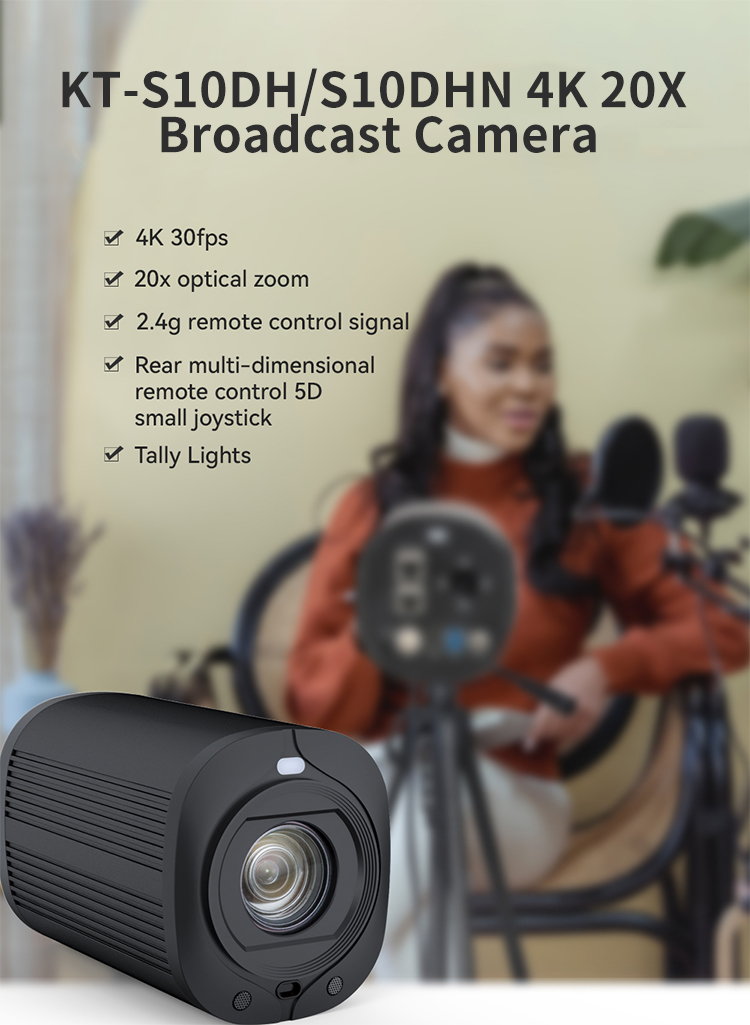

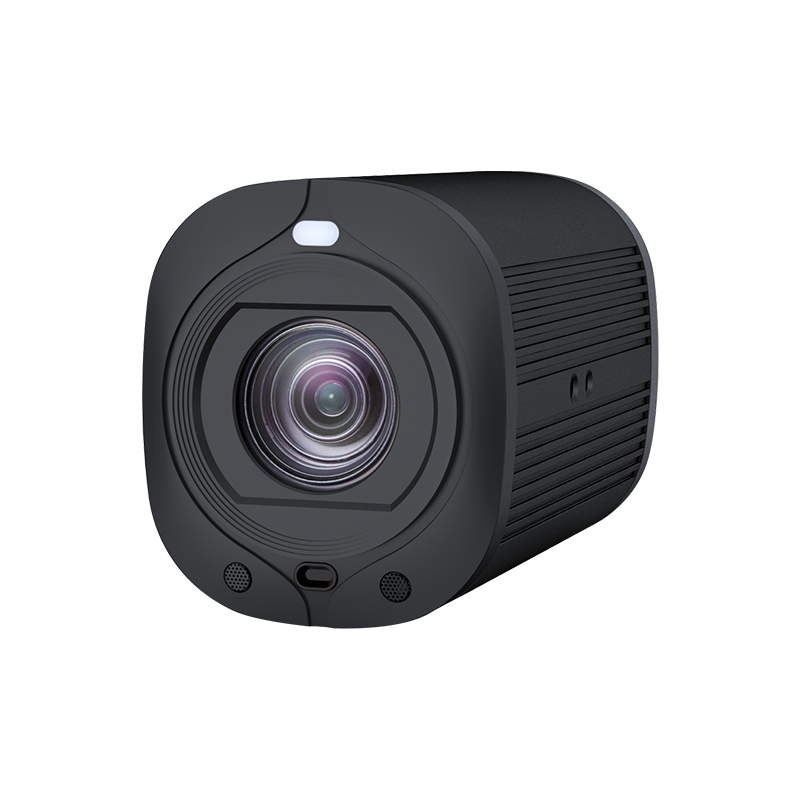

KT-S10DH/S10 DHN
Sur commande

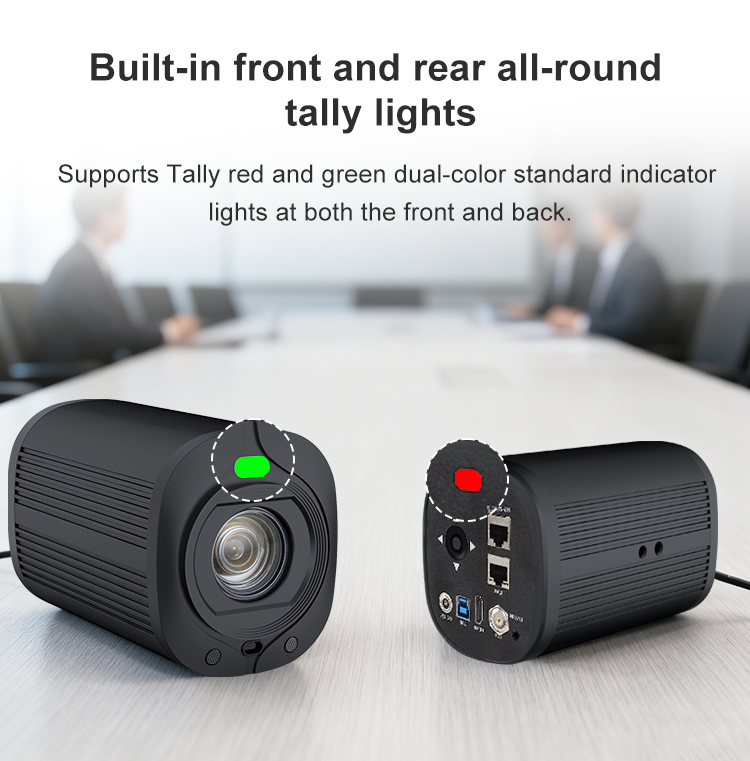

Le KT-S10DH est une caméra de diffusion professionnelle 4K Ultra HD de KATO (HDKATOV) dotée d'un zoom optique 20x, d'un capteur d'image SONY et de plusieurs interfaces de sortie telles que HDMI, USB3.0, IP et 3G-SDI pour une connectivité polyvalente Il comprend des feux de signalisation avant et arrière intégrés, un traitement d'image en basse lumière et prend en charge diverses normes de compression vidéo et protocoles réseau, ce qui le rend adapté à la vidéoconférence, aux salles de conférence et à la diffusion professionnelle .
|
Image Parameters |
|
|
Resolution |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
20X Optical Zoom, f=5.2mm(W)~104mm(T) |
|
Horizontal View Angle |
58.7°(W)~3.2°(T) |
|
Vertical View Angle |
32.2°(W)~1.8°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/25s ~ 1/10000s |
|
Minimum Illumination |
0.1 Lux @ (F1.5, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Preset Positions |
9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
POE |
802.3af |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 (USB defaults to 4K is optional) |
|
Frame Rate |
Max.30 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 1920*1080 |
|
Sub Stream Resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bit Rate |
128kbps |
|
Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line RJ45 interface, support RS232/RS422/RS485: VISCA/Pelco-D/Pelco-P. |
|
Power Interface |
IEC 60130-10 Type A |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.3.0A |
|
Power Consumption |
Max.36W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
(W)88*(D)167*(H)102mm |
|
Weight |
1.5kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, Serial port adapter cable, Bracket |
