KT S10MS
Sur commande

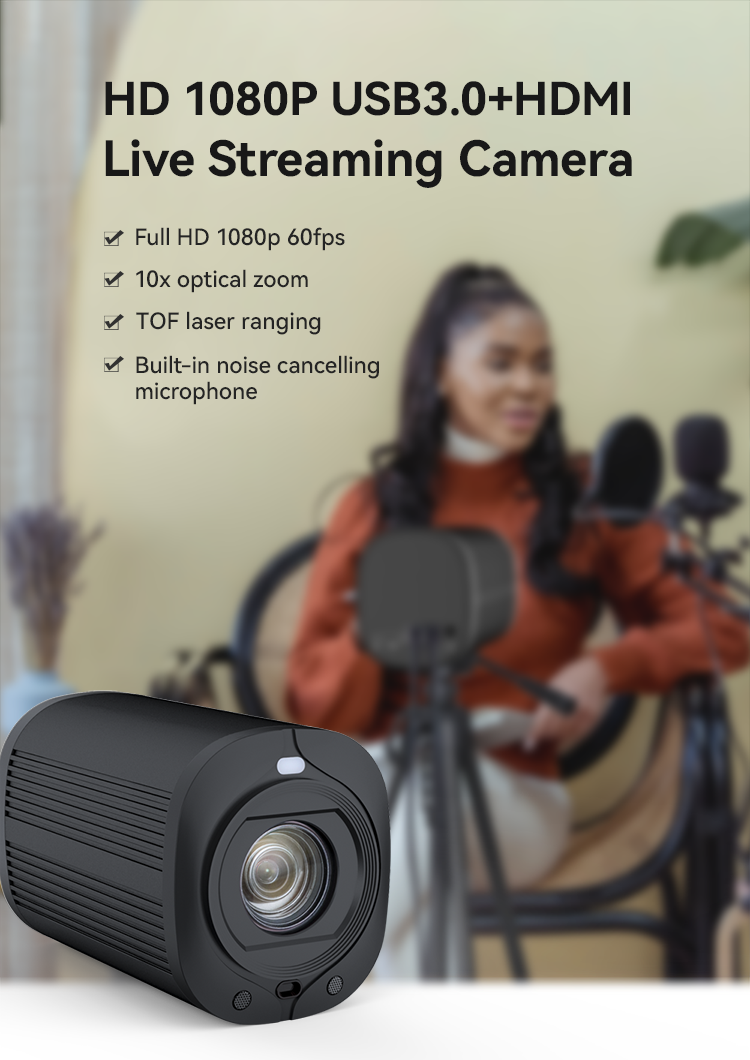

Le « KT S10MS » fait très probablement référence au Kato Vision KT-S10MS, une caméra de streaming Full HD 1080p 60fps avec zoom optique 10x, mise au point rapide TOF (Time-of-Flight) et sorties USB 3.0 et HDMI simultanées, conçue pour la diffusion en direct et la présentation détaillée des mouvements et des expressions.
|
Image Parameters |
|
|
Resolution |
HDMI: 1080p60/50/30/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8" CMOS |
|
Pixels |
3.50 Megapixels, 2.07 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
10X Optical Zoom, f=4.32mm(W)~43.2mm(T), F1.76~F3.0 |
|
Horizontal View Angle |
67.5°(W)~7.6°(T) |
|
Vertical View Angle |
40.2°(W)~4.3°(T) |
|
Focus System |
Auto, Manual, TOF |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
0.5 Lux @ (F1.5, AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Fixed color temperature, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Preset Positions |
9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG, H.264 |
|
Resolution |
1920*1080, 1280*720, 800*600, 704*576, 640*480, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
|
Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 1.4 |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Input Voltage |
DC 12V |
|
Input Current |
Max.1.5A |
|
Power Consumption |
Max.18W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black |
|
Dimension |
(W)88*(D)152*(H)102mm |
|
Weight |
0.8kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable |
